FN2030B-30-08

Overview

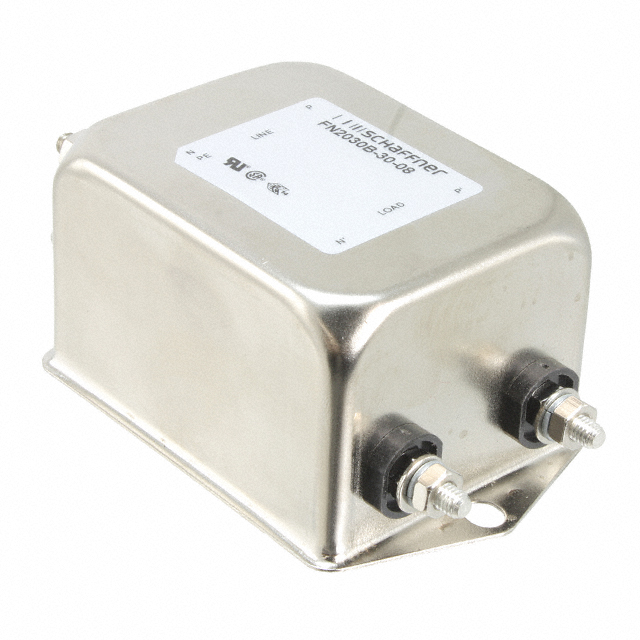

The FN2030B-30-08 is a single-phase EMC/EMI line filter module manufactured by Schaffner EMC Inc. It features a rated current of 30 A and operates at frequencies up to 400 Hz. The unit is designed for AC voltages up to 250 V and utilizes threaded M4 posts for termination. This component provides single-stage attenuation within a metal case structure.

Feature Summary

• Metal case construction ensures optimum connection to earth ground
• Designed for good high-frequency performance characteristics
• Single-stage noise attenuation capability

Applications

• Power line filtering in industrial equipment
• EMC mitigation in electronic systems operating at 400 Hz
• Applications requiring robust earth grounding connections

Procurement Notes

Verify the specific voltage rating and frequency compatibility with your system requirements before procurement. Confirm that the M4 threaded post termination style matches your assembly hardware. Ensure the single-stage attenuation meets your electromagnetic interference suppression needs. Check for any updated environmental compliance declarations such as RoHS status from the manufacturer.

Selection Notes

Select this model when a 30 A current rating and 400 Hz operation are required. The metal housing offers superior earth connectivity compared to plastic alternatives. Consider the physical dimensions and mounting constraints associated with the threaded post design. Evaluate if single-stage filtering is sufficient or if additional stages are needed for stricter emission limits.

Part Context

This component belongs to the FN2030 series of power line filter modules from Schaffner EMC Inc. The series is characterized by its use of metal cases for enhanced grounding and high-frequency performance. These filters are engineered for single-phase applications where reliable noise suppression and durable mechanical connections are critical for system integrity.

Replacement Considerations

The FN2030-30-08 is listed as an alternative part number within the same product family. Verify electrical specifications and termination styles match before substitution. Ensure the replacement maintains the required current and voltage ratings for your specific application environment.
