FN2030M-20-06

Overview

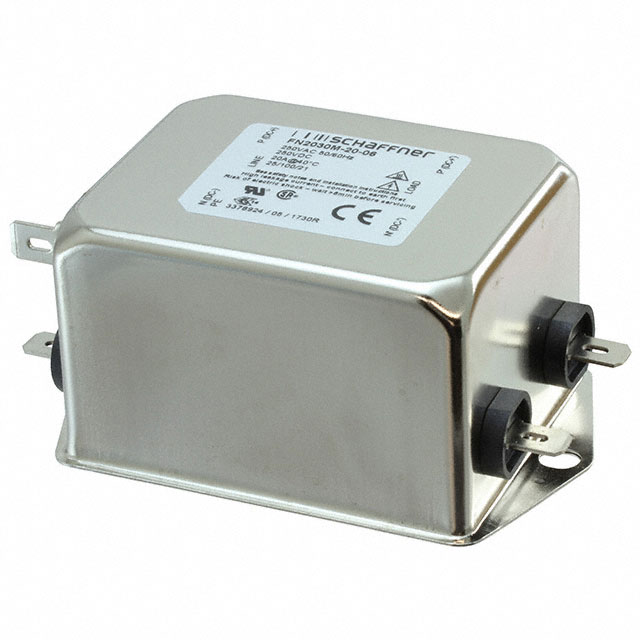

The Schaffner FN2030M-20-06 is a single-phase, single-stage power line filter designed for chassis mounting. It supports a voltage rating of 250 VAC and 250 VDC with a current capacity of 20 A. The component operates within a frequency range of 0 Hz to 400 Hz and utilizes fast-on terminals for connection. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 40.3 mm in height, weighing 285 g. It functions reliably between -25 °C and +100 °C.

Feature Summary

• Provides electromagnetic interference suppression through single-stage filtering architecture
• Features quick-connect terminals for rapid circuit integration
• Engineered for robust chassis mounting applications

Applications

• Industrial equipment power conditioning
• Medical device power supply protection
• Information technology hardware EMI mitigation

Procurement Notes

Verify the specific terminal configuration matches the design requirements, as suffixes indicate interface types. Confirm compliance certifications such as UL or IEC/EN are required for the target market. Ensure the chassis mounting style aligns with the enclosure design. Cross-reference the manufacturer part number with official datasheets to confirm electrical ratings before procurement.

Selection Notes

Select this model when a 20 A current rating and 250 VAC/VDC operation are required. The fast-on terminal style suits designs prioritizing assembly speed over screw connections. Consider the physical dimensions and weight for chassis space allocation. Verify that the operating temperature range meets the environmental conditions of the intended application site.

Part Context

This component belongs to the FN2030 series of power line filters manufactured by TE Connectivity / Schaffner. The series offers various current ratings and terminal options. The 'M' suffix typically denotes specific construction or terminal variations within the product family. This unit is an active component used for noise reduction in AC and DC power lines.

Replacement Considerations

Check for exact pinout compatibility if substituting. Verify that alternative models maintain the same 20 A rating and 250 VAC/VDC specifications. Ensure mechanical mounting holes align with existing chassis cutouts. Confirm that replacement units hold identical safety certifications.
