Product Detailed Parameters
- Description：LINE FILTER 250VAC/VDC 20A CHASS
- Series：FN 2030
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：250V
- Voltage - Rated AC：250V
- Current：20 A
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M4)
- Inductance：4mH
Download product information
Overview

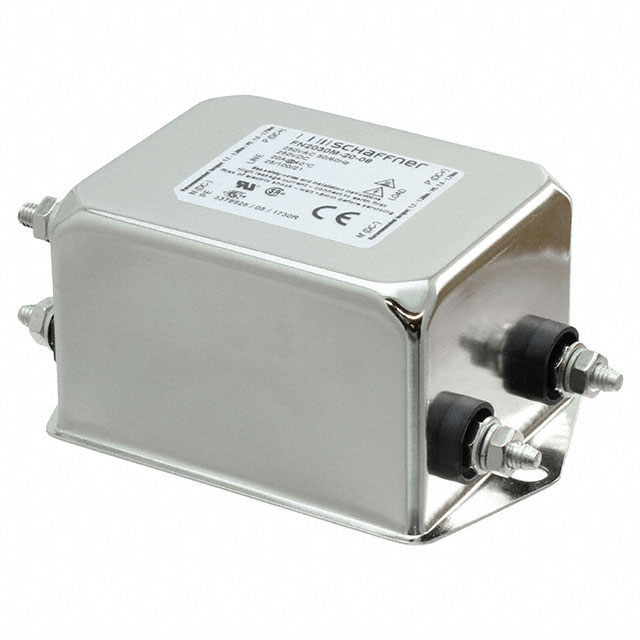

The FN2030M-20-08 is a single-phase EMC/EMI line filter manufactured by TE Connectivity Schaffner. It features a current rating of 20 A and operates at voltages up to 250 VAC and 250 VDC, with a frequency range extending to 400 Hz. The unit utilizes a single-stage configuration for noise suppression. Termination is achieved via threaded posts sized M4. Designed for chassis mounting, this component serves as a power line filter module intended for industrial applications requiring electromagnetic interference mitigation.
Feature Summary
- Single-stage electromagnetic interference suppression
- Chassis mount installation design
- Threaded post termination interface
Applications
- Industrial machinery power input protection
- Medical equipment EMI filtering
- General purpose AC/DC power line conditioning
Procurement Notes
Verify the specific voltage and current ratings against your system requirements before ordering. Confirm that the M4 threaded post termination matches your wiring infrastructure. Ensure the chassis mounting dimensions fit your enclosure layout. Check for RoHS compliance status if required by your manufacturing standards. Validate the operating temperature range against your environmental conditions.
Selection Notes
Select this model when a 20 A single-phase filter is required for chassis mounting. Consider the M4 termination style for secure connection methods. Evaluate the single-stage performance against more complex multi-stage needs. Ensure the 250 VAC/DC rating aligns with your supply voltage. Verify compatibility with frequencies up to 400 Hz.
Part Context
This component belongs to the FN2030 series of single-phase filters from Schaffner. The series offers various current ratings and termination options. The FN2030M variant specifically denotes threaded post connections. This series is designed for robust industrial environments. It provides essential EMI filtering for sensitive electronic loads.
FAQ
What is the termination type for this filter?
The FN2030M-20-08 uses M4 threaded posts for electrical connection.
Is this a single or double stage filter?
It is a single-stage EMC/EMI line filter.
