FN2030M-3-06

Overview

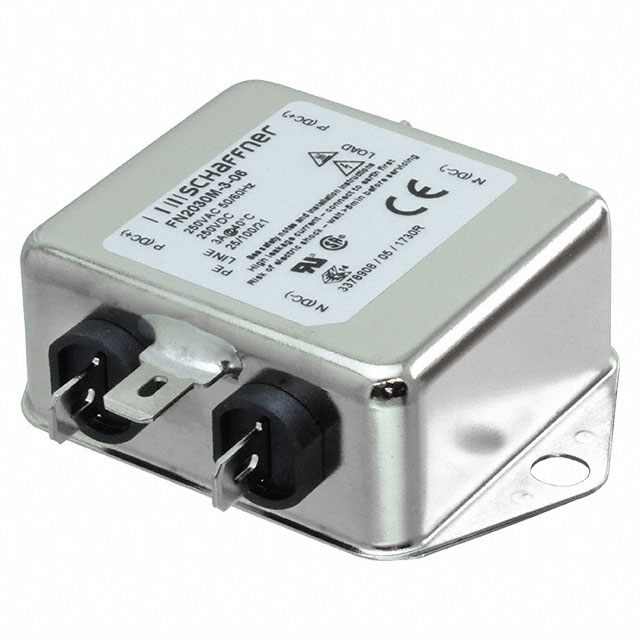

The FN2030M-3-06 is a single-phase, single-stage power line EMI filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with fast-on terminals for secure electrical connections. The component is rated for 3 A current and operates within a voltage range of 250 VAC/DC across a frequency spectrum from 0 Hz to 400 Hz. Key electrical specifications include a leakage current of 460 uA. Physical dimensions are 50.5 mm in length, 44.5 mm in width, and 22.3 mm in height, with an operating temperature range spanning from -25°C to +100°C.

Feature Summary

• Single-stage electromagnetic interference suppression for single-phase circuits
• Chassis mounting configuration for stable mechanical installation
• Fast-on terminal style enabling rapid wiring integration

Applications

• Industrial equipment power input stages
• Medical device power supply filtering
• Test and measurement instrument EMC compliance

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to ensure correct terminal type and performance characteristics. Confirm that the required leakage current limits align with safety standards for the intended application environment. Cross-reference the chassis mounting hole pattern with enclosure designs prior to procurement to guarantee physical compatibility.

Selection Notes

Select this model when a single-stage filtration solution is sufficient for the target noise profile. Ensure the 3 A current rating meets the maximum load requirements of the connected circuitry. Verify that the fast-on terminal style matches existing harness connectors and that the chassis mount footprint fits within the available panel space constraints.

Part Context

This component belongs to the FN2030 series of AC/DC chassis filters designed for general-purpose EMC applications. The series offers various current ratings and terminal options to accommodate different system architectures. The FN2030M variant specifically utilizes fast-on connections, distinguishing it from screw-terminal or PCB-mount alternatives within the broader product family.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the available source material. Consult official cross-reference guides for equivalent components if direct replacement is necessary.
