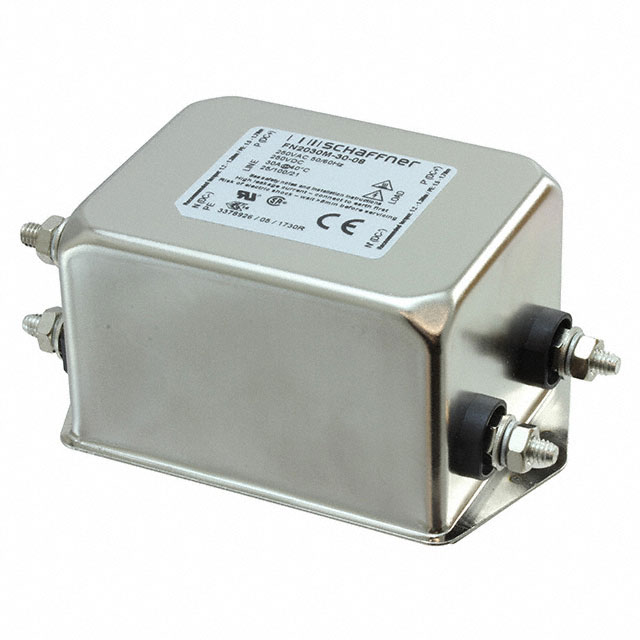

FN2030M-30-08

Overview

The FN2030M-30-08 is a single-phase EMI/EMC line filter manufactured by Schaffner EMC Inc. It features a chassis mount design with quick-connect terminals for secure installation. The component is rated for AC voltages of 110V and 250V, supporting a continuous current of 30A. It operates within a frequency range of DC to 400Hz and includes two filtering stages. Key electrical parameters include a leakage current ranging from 2.28mA to 3.69mA and an inductance value of 7.8mH. The unit complies with RoHS3 standards and holds CSA, ENEC, and UR certifications.

Feature Summary

• Provides effective electromagnetic interference suppression through dual-stage filtering architecture
• Designed for robust chassis mounting with quick-connect terminal interfaces
• Certified for international safety compliance including CSA, ENEC, and UR standards

Applications

• Industrial power supply units requiring EMI reduction
• Medical equipment power inputs
• General purpose electronic systems needing noise filtration

Procurement Notes

Verify the specific voltage rating (110V/250VAC) and current capacity (30A) against system requirements before ordering. Confirm that the quick-connect terminal style matches existing wiring harnesses. Ensure the chassis mount footprint aligns with the enclosure design. Check for required safety certifications such as CSA or ENEC for your target market. Validate leakage current specifications to ensure compliance with sensitive application limits.

Selection Notes

Select this model when a single-phase filter with high current handling capability is needed. The 30A rating suits heavy-duty industrial applications. Consider the physical dimensions and mounting style for integration into control panels. Evaluate the leakage current characteristics if connected to sensitive patient care or measurement devices. Compare alternative series models if different terminal types or lower current ratings are sufficient for the specific load.

Part Context

This component belongs to the FN2030 series of single-phase AC/DC chassis filters produced by Schaffner. The series is designed for general-purpose EMI suppression in various electronic environments. The FN2030M variant specifically denotes the construction and terminal configuration within this product family. These filters are commonly used to meet regulatory emissions standards in commercial and industrial equipment.

Replacement Considerations

Public confirmed substitute part numbers: 5500.2612.04 (SCHURTER Inc.). Verify electrical compatibility and mechanical fit before substitution.
