FN2030M-6-06

Overview

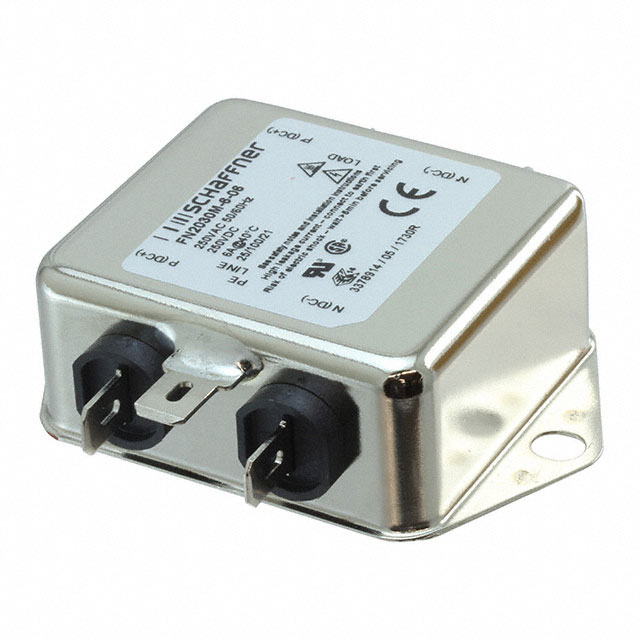

The Schaffner FN2030M-6-06 is a single-stage, single-phase EMI power line filter designed for chassis mounting. It supports AC/DC voltages up to 250V and handles a maximum current of 6A. The component operates within a frequency range of DC to 400Hz and utilizes fast-on terminals for connection. Key electrical parameters include an inductance of 14mH and a leakage current of 3.4mA. It functions reliably across a temperature range of -25°C to +100°C.

Feature Summary

• Single-stage filtering configuration for effective noise suppression
• Chassis mount design with fast-on terminal connections
• Operates at frequencies up to 400Hz for specialized applications

Applications

• Industrial equipment requiring 400Hz operation
• Avionic systems utilizing AC/DC power lines
• Medical devices needing EMI protection
• Test and measurement instrumentation

Procurement Notes

Verify the specific suffix 'M' against official datasheets to confirm it denotes the correct variant, as standard FN2030 models may differ. Confirm that the 14mH inductance and 3.4mA leakage current match your system requirements. Ensure compatibility with 250V AC/DC ratings and fast-on terminal specifications before procurement.

Selection Notes

Select this model when a single-stage filter is sufficient for noise reduction needs. It is suitable for applications operating at 400Hz, such as aerospace or military systems. Consider the 6A current rating and chassis mounting style for integration into compact enclosures where fast-on connections are preferred over screw terminals.

Part Context

This component belongs to the Schaffner FN2030 series, which offers various configurations for single-phase power line filtering. The series provides options for different current ratings and terminal types. The FN2030M-6-06 specifically targets applications requiring 400Hz operation and single-stage performance.

Replacement Considerations

FN2030B-6-06: Single-stage alternative with similar ratings but potentially different inductance values. FN2070B-6-06: Two-stage filter offering higher attenuation but increased size and cost. Verify inductance and leakage current compatibility when substituting.
