Product Detailed Parameters
- Description：LINE FILTER 250VAC/VDC 1A CHASS
- Series：FN 2030
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：250V
- Voltage - Rated AC：250V
- Current：1:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：20mH
Download product information
Overview

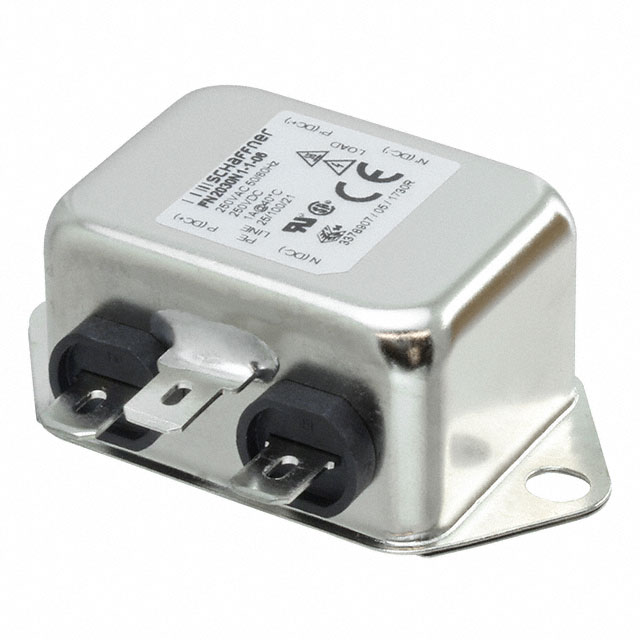

The Schaffner FN2030N1-1-06 is a single-phase, single-stage EMI power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 1 A. The component utilizes Faston terminals for input and output connections. Key electrical parameters include an inductance of 20 mH and a maximum leakage current of 4.91 mA. It operates within a frequency range of 0 Hz to 400 Hz and supports temperatures from -25°C to +100°C.
Feature Summary
- Single-stage filtering architecture for effective noise suppression
- Chassis mount design for secure installation
- Faston termination style for standard wiring compatibility
Applications
- Industrial equipment power supply protection
- Medical device electromagnetic interference reduction
- Information technology hardware noise filtering
Procurement Notes
Verify the specific part number against official TE Connectivity / Schaffner documentation to ensure accuracy. Confirm that the 20 mH inductance and 4.91 mA leakage current specifications match your system requirements. Ensure the chassis mount form factor and Faston terminal type are compatible with your assembly design before procurement.
Selection Notes
Select this component when a single-phase filter with low leakage current is required for sensitive applications. The 20 mH inductance provides specific attenuation characteristics suitable for standard power line frequencies up to 400 Hz. Consider the physical dimensions and chassis mounting constraints during the design phase to ensure proper integration.
Part Context
This component belongs to the FN2030 series of high-performance single-phase filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series offers various current ratings and inductance values to address different electromagnetic compatibility needs in global markets.
FAQ
What is the maximum leakage current for this filter?
The maximum leakage current is specified as 4.91 mA.
What is the operating temperature range?
The component operates within a temperature range of -25°C to +100°C.
