FN2030N1-10-06

Overview

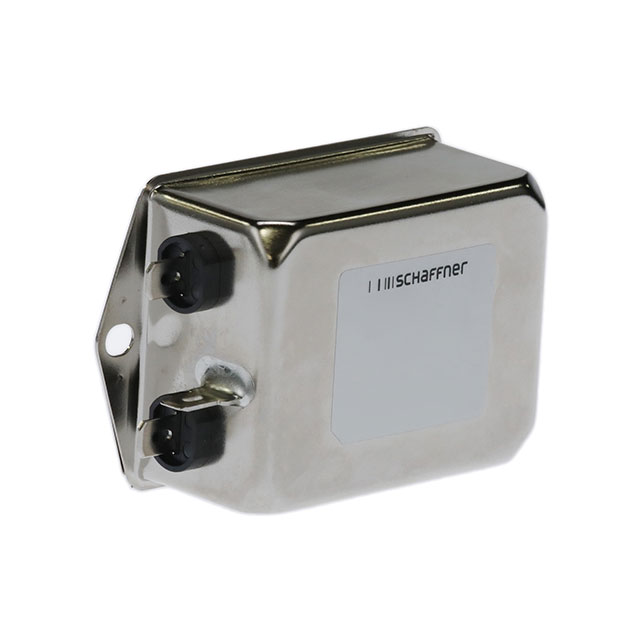

The Schaffner FN2030N1-10-06 is a single-phase, single-stage EMI power line filter designed for chassis mounting. It supports a voltage rating of 250 VAC and operates within a frequency range of 0 Hz to 400 Hz. The component handles a rated current of 10 A with faston terminal connections. Key electrical parameters include an inductance of 8 mH, capacitance of 470 nF, and a leakage current of 660 µA. It functions reliably between -25°C and +100°C.

Feature Summary

• Provides effective electromagnetic interference suppression through a single-stage filtering architecture.
• Utilizes faston terminals for straightforward circuit board integration.
• Engineered for stable operation across a wide temperature range.

Applications

• Industrial equipment requiring EMI noise reduction
• Medical devices needing compliant power filtering
• Information technology hardware systems

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure accuracy. Confirm that the faston terminal type matches your assembly requirements. Check for relevant safety certifications such as UL or IEC/EN if applicable to your region. Ensure the chassis mount style fits your enclosure design constraints before finalizing procurement.

Selection Notes

Select this model when a 10 A current capacity and 250 VAC rating are required for single-phase applications. The 400 Hz operational limit makes it suitable for aerospace or specialized industrial frequencies. Consider the physical dimensions and chassis mounting style during mechanical design. Verify that the faston connection method aligns with your PCB or wiring harness specifications.

Part Context

This component belongs to the FN2030 series by TE Connectivity / Schaffner. The series offers various current ratings and terminal options for different power line filtering needs. The FN2030N1-10-06 specifically addresses the 10 A requirement within this lineup, providing a standardized solution for EMI suppression in power inputs.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Schaffner documentation for potential cross-references or updated equivalents.
