FN2030N1-12-06

Overview

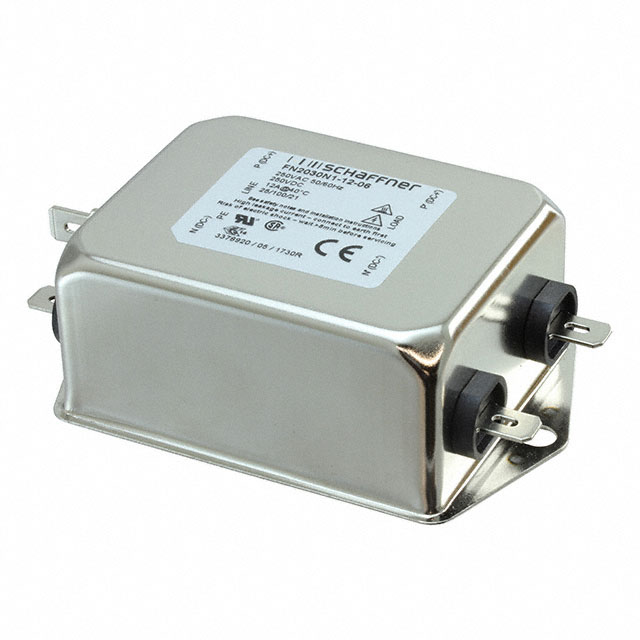

The Schaffner FN2030N1-12-06 is a single-phase, single-stage EMI power line filter designed for chassis mounting. It supports a rated current of 12 A and operates at voltages up to 250 VAC or DC. The component functions within a frequency range of 0 Hz to 400 Hz. Key electrical parameters include a leakage current of 1.41 mA and a power loss of 0.9 W. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 30.3 mm in height. It utilizes fast-on terminals for connection.

Feature Summary

• Single-stage electromagnetic interference filtering architecture
• Chassis mount construction for secure installation
• Fast-on terminal interface for rapid wiring

Applications

• Power supply input stages
• Electronic equipment requiring EMI suppression
• Industrial control systems

Procurement Notes

Verify the exact part number against manufacturer documentation to ensure compatibility with specific voltage and current requirements. Confirm terminal type and mounting style match the design specifications. Check for updated compliance certifications such as UL, CSA, and IEC/EN before finalizing procurement decisions.

Selection Notes

Select this component based on its 12 A current rating and 250 VAC/DC voltage capability. Ensure the chassis mounting style fits the enclosure design. Verify that the fast-on terminals align with the available connector options in the system architecture.

Part Context

This model belongs to the FN2030 series of single-phase EMI filters manufactured by TE Connectivity / Schaffner. The series provides standardized solutions for electromagnetic interference suppression in various electronic applications.

Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify electrical ratings and physical dimensions before replacing.
