FN2030N1-8-06

Overview

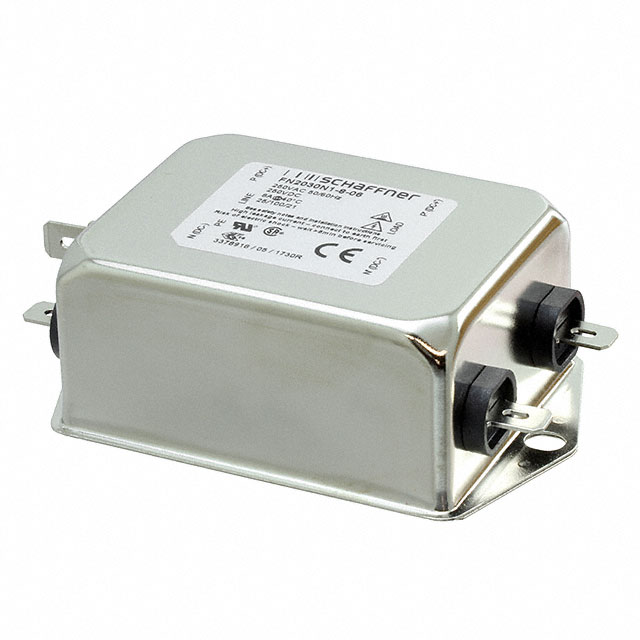

The Schaffner FN2030N1-8-06 is a single-phase EMI power line filter designed for chassis mounting. It supports a rated current of 8 A and operates at voltages up to 250 V AC/DC with a frequency range of 0 Hz to 400 Hz. The unit features fast-on terminals and includes internal components such as an 8 mH inductor, 470 nF capacitor, and 680 kΩ resistor. Key electrical specifications include a leakage current of 660 μA and a power loss of 3.2 W. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 30.3 mm in height.

Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines
• Utilizes fast-on terminal connections for rapid circuit integration
• Engineered for reliable operation within a -25°C to +100°C temperature range

Applications

• Industrial machinery power supply filtering
• Medical equipment noise reduction
• Test and measurement instrument protection

Procurement Notes

Verify the specific suffix against official datasheets to confirm terminal type and electrical ratings. Ensure compatibility with the target voltage and current requirements before procurement. Confirm compliance certifications required for the end application. Check for updated regulatory documentation from the manufacturer.

Selection Notes

Select this model for applications requiring single-stage filtering with fast-on connectivity. Compare leakage current limits against safety standards for medical or sensitive electronics. Evaluate thermal management needs based on the specified power loss rating. Ensure physical space accommodates the chassis mount dimensions.

Part Context

This component belongs to the FN2030 series of EMI filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series offers various current ratings and termination options for power line conditioning. This specific variant targets 8 A applications with quick-connect terminals.

Replacement Considerations

Consult official substitution guides for equivalent performance. Verify that alternative parts match the 8 A rating, 250 VAC limit, and fast-on terminal style. Ensure dimensional compatibility for chassis mounting.
