FN2030Z-10-06

Overview

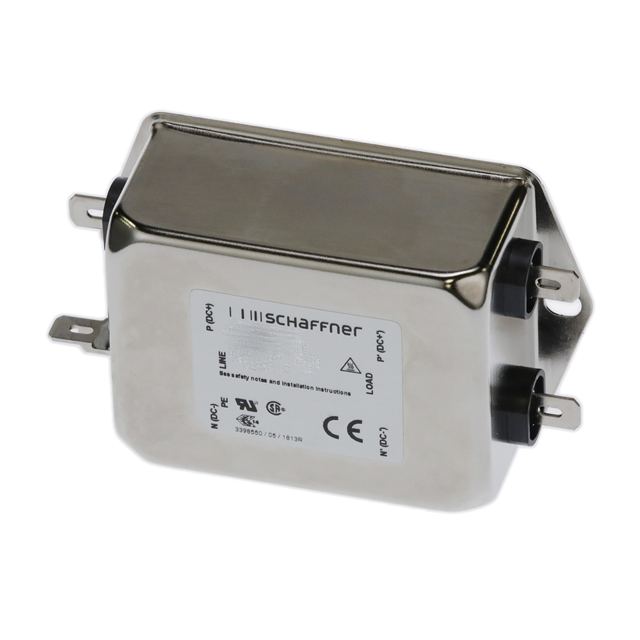

The Schaffner FN2030Z-10-06 is a single-phase, single-stage power line filter designed for chassis mounting. It features a rated current of 10 A and a voltage rating of 250 VAC. The device operates within a frequency range of 0 Hz to 400 Hz and includes integrated surge and pulse protection (indicated by the 'Z' suffix). Electrical specifications include a maximum leakage current of 660 µA. The unit utilizes fast-on terminals for connection and complies with UL, CSA, and IEC/EN standards. Physical dimensions are approximately 64.8 mm in length, 49.8 mm in width, and 30.3 mm in height.

Feature Summary

• Integrated surge and pulse protection capabilities
• Single-phase EMI filtering configuration
• Chassis mount installation style

Applications

• Electrical and electronic equipment
• Consumer goods
• Household equipment
• Medical equipment

Procurement Notes

Verify the specific terminal type compatibility during procurement, as the model indicates fast-on connections. Confirm that the integrated surge protection aligns with the system's transient requirements. Ensure the chassis mounting holes match the physical dimensions provided in the datasheet. Check for any regional certification requirements such as UL or CSA before finalizing the order.

Selection Notes

Select this component when single-stage filtering combined with surge protection is required for 10 A applications. The 250 VAC rating suits standard mains frequencies up to 400 Hz. Consider the chassis mount form factor for direct panel integration. Compare leakage current limits against safety standards if sensitive medical or precision instrumentation is involved.

Part Context

This part belongs to the FN2030 series of single-phase AC/DC chassis filters manufactured by Schaffner. The series offers various current ratings and terminal options. The 'Z' designation specifically denotes the inclusion of optional surge and pulse protection features, distinguishing it from standard FN2030 models which may lack this specific protection circuitry.

Replacement Considerations

FN2030-10-06 serves as a potential substitute if surge protection is not required. Verify that the replacement matches the physical footprint and terminal spacing. Ensure the electrical ratings meet or exceed the original design specifications.
