FN2060-1-06

Overview

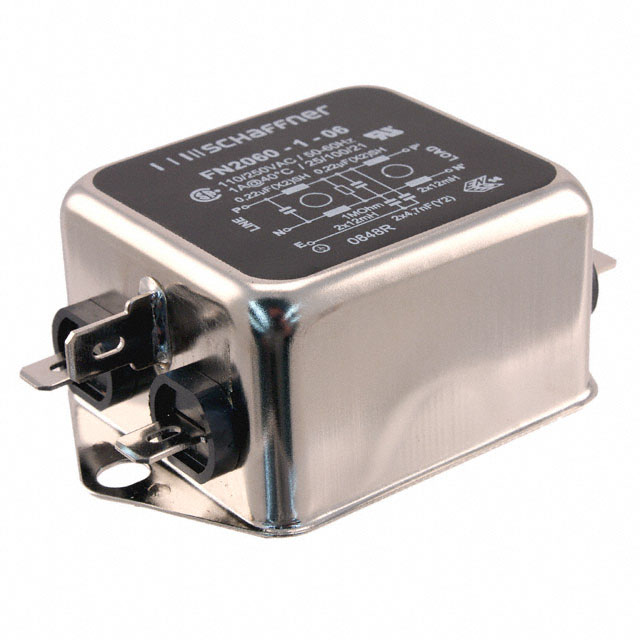

The Schaffner FN2060-1-06 is a single-phase, two-stage EMI/EMC power line filter designed for chassis mounting. It supports a rated voltage of 250V AC and a continuous current of 1A. The component operates within a frequency range of DC to 400Hz. Key electrical parameters include a leakage current of 0.734mA and a capacitance value of 220nF. The unit utilizes faston quick-connect terminals for circuit attachment. Physical dimensions are approximately 46.6mm in length, 71mm in depth, and 29.3mm in height.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design with faston quick-connect terminals
• Operates across DC to 400Hz frequency spectrum

Applications

• Single-phase AC/DC power line interference suppression
• Industrial equipment EMC compliance
• General purpose electronic device noise reduction

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity or Schaffner documentation to confirm exact electrical ratings and terminal configurations. Ensure compatibility with existing chassis mounting holes and terminal spacing requirements before integration into the final assembly design.

Selection Notes

Select this model for applications requiring single-phase filtering at low current levels up to 1A. Confirm that the operating environment remains within the specified temperature range of -25°C to +100°C. Verify that the 250V AC rating aligns with the system's maximum supply voltage to ensure safe operation.

Part Context

This component belongs to the FN2060 series of single-phase AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series provides general-purpose EMI suppression solutions for various industrial and commercial applications requiring robust noise filtering capabilities.

Replacement Considerations

FN2060A-1-06
