FN2060-1-07

Overview

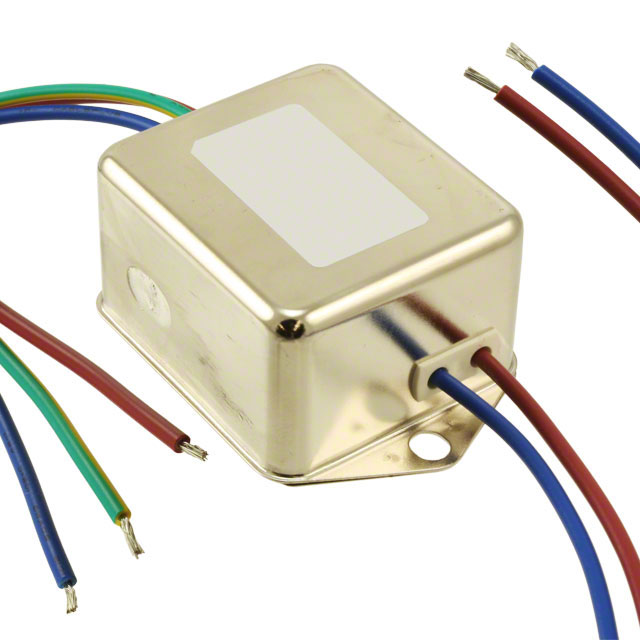

The FN2060-1-07 is a single-phase EMC/EMI power line filter module manufactured by Schaffner EMC Inc. It features a two-stage configuration designed for chassis mounting applications. The component operates within a frequency range of DC to 400Hz and supports an AC voltage rating of 250V with a current capacity of 1A. Key electrical specifications include an inductance of 970µH. The unit utilizes quick connect terminals for termination and is certified by CE, CSA, ENEC, and UR agencies.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure installation
• Quick connect terminal style for simplified wiring

Applications

• Safety-critical electronic equipment
• Renewable energy systems
• Inverter circuits

Procurement Notes

Verify the specific part number FN2060-1-07 against official Schaffner documentation to ensure correct current rating and configuration. Confirm that the required certifications (CE, CSA, ENEC, UR) meet your regional regulatory standards. Check for RoHS3 compliance if environmental regulations apply to your project. Ensure the chassis mounting dimensions and quick connect terminal types are compatible with your assembly design before ordering.

Selection Notes

Select this model when a low-current (1A) single-phase filter is required for chassis-mounted installations. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the operating temperature range of -25°C to 100°C suits your environment. Ensure the 250VAC rating aligns with your system's maximum input voltage. Consider the physical size constraints for chassis integration.

Part Context

This component belongs to the FN 2060 series of single-phase and DC chassis filters produced by Schaffner EMC Inc. The series includes various current ratings and configurations tailored for different power levels. These filters are commonly used in industrial and commercial applications requiring robust electromagnetic interference protection. The FN2060 series is recognized for its reliability in safety-related applications.

Replacement Considerations

Direct substitutes may include other models from the FN2060 series with identical 1A ratings and two-stage configurations. Verify pinout compatibility and mounting hole patterns before substitution. Cross-reference with Schaffner's official replacement guide to ensure equivalent performance characteristics and certification status.
