FN2060-10-06

Overview

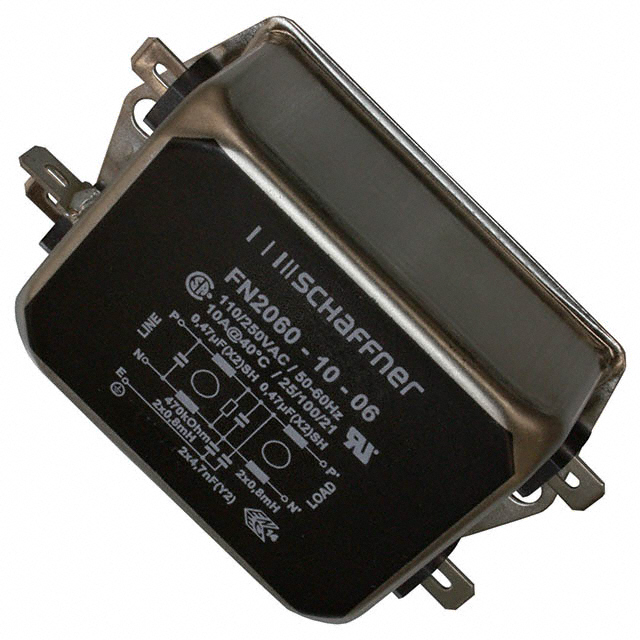

The Schaffner FN2060-10-06 is a single-phase EMI power line filter designed for industrial applications. It features a rated current of 10 A and operates at voltages up to 250 VAC. The unit provides common mode attenuation exceeding 60 dB at 1 MHz, ensuring effective suppression of electromagnetic interference in sensitive electronic equipment environments.

Feature Summary

• Compact DIN rail mounting design for space-constrained installations
• Integrated safety switch mechanism for enhanced operational security
• High attenuation performance across standard EMI frequency bands

Applications

• Industrial control systems
• Medical equipment power supplies
• Automated manufacturing machinery

Procurement Notes

Verify the specific voltage rating and current capacity against your system requirements before procurement. Confirm that the mounting configuration matches your existing infrastructure. Ensure compliance with local electrical safety standards applicable to your region. Check for any required certifications such as UL or CE for your specific market.

Selection Notes

Select this model when high common mode noise suppression is required in single-phase circuits. Consider the physical dimensions and DIN rail compatibility during the design phase. Evaluate the thermal performance under maximum load conditions to ensure reliable operation over time.

Part Context

This component belongs to the FN2060 series of EMI filters from Schaffner EMC Inc. The series is engineered for robust performance in demanding industrial environments. It represents a solution for meeting stringent electromagnetic compatibility regulations in global markets.

Replacement Considerations

Consult official Schaffner documentation for direct cross-reference part numbers. Verify pinout compatibility and mechanical footprint before substitution. Ensure equivalent electrical specifications are maintained to preserve system integrity.
