FN2060-10-07

Overview

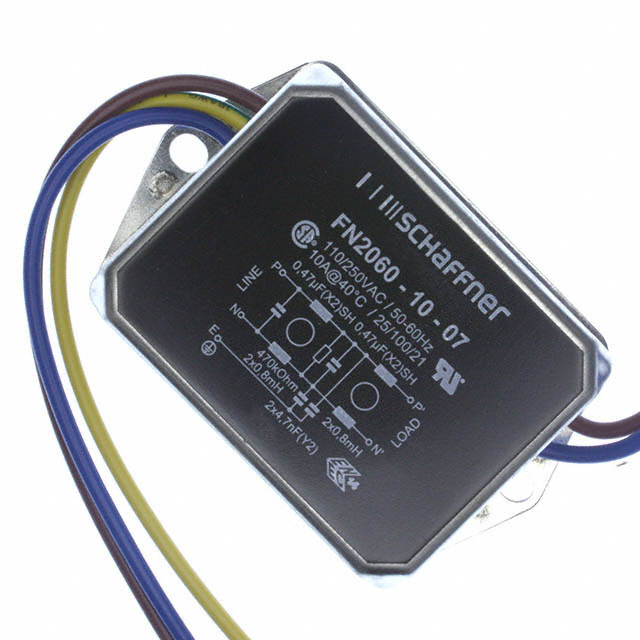

The FN2060-10-07 is a single-phase, two-stage power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with wire termination and operates within a frequency range of 0 Hz to 400 Hz. The component has a voltage rating of 250 VAC and a current rating of 10 A. Key electrical parameters include a leakage current of 660 uA. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 30.3 mm in height. It supports an operating temperature range from -25 C to +100 C and holds UL, CSA, and ENEC-14 certifications.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mounting configuration for secure installation
• Wire termination style for direct circuit integration

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• General purpose AC/DC power applications

Procurement Notes

Verify the manufacturer designation as TE Connectivity / Schaffner or Schaffner EMC Inc. during sourcing. Confirm compliance requirements such as UL, CSA, and ENEC-14 certifications match project specifications. Ensure the 10 A current rating and 250 VAC voltage rating align with system load requirements before procurement.

Selection Notes

Select this model when a single-phase, two-stage filter with a 10 A rating is required. The chassis mount style and wire termination dictate mechanical integration constraints. Verify that the 660 uA leakage current meets safety standards for the specific application environment.

Part Context

This component belongs to the FN2060 series of single-phase AC/DC chassis filters. The series is designed for general-purpose and renewable resource applications requiring robust EMI suppression. The part number indicates a 10 A current rating and specific terminal configuration.

Replacement Considerations

Publicly confirmed substitute part numbers were not identified in the provided documentation.
