FN2060-10-08

Overview

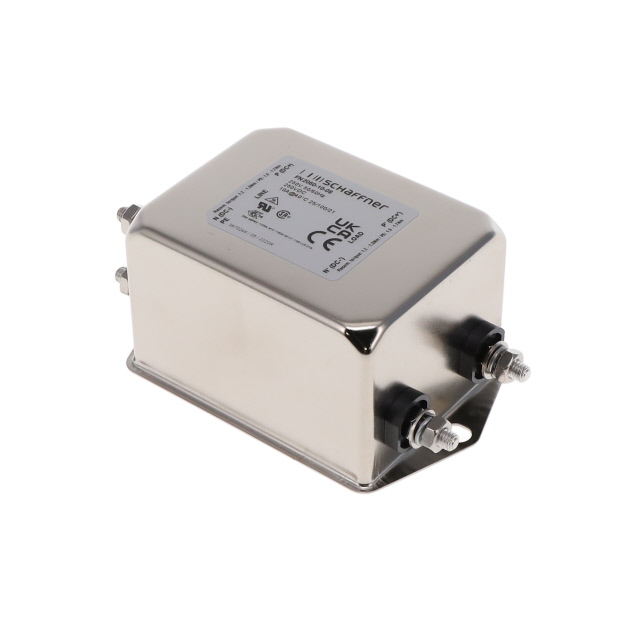

The Schaffner FN2060-10-08 is a single-phase power line filter designed for chassis mounting. It features a current rating of 10 A and operates at an AC voltage of 250 V. The component utilizes threaded stud input and output terminations, providing robust mechanical connections for high-current applications. This filter belongs to the FN2060 series, which is engineered for effective electromagnetic interference suppression in industrial environments.

Feature Summary

• Single-phase configuration for dedicated power line filtering
• Threaded stud termination style for secure mechanical installation
• Chassis mount design suitable for panel integration

Applications

• Industrial machinery power supply circuits
• Medical equipment internal power distribution
• Telecommunications infrastructure power modules

Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to ensure correct termination type and current rating. Confirm that the threaded stud dimensions match the mounting hardware requirements. Check for updated compliance certifications such as CE or UL before finalizing procurement specifications.

Selection Notes

Select this model when a single-phase filter with threaded stud connections is required for chassis mounting. Ensure the application current does not exceed the 10 A rating. Consider the physical size constraints of the chassis opening for proper fitment and thermal management during operation.

Part Context

This component is part of the Schaffner FN2060 series, a family of single-phase EMC/EMI filters. These filters are widely used in various industries to meet regulatory emission standards. The series offers multiple current ratings and termination options to suit different system architectures.

Replacement Considerations

Direct substitutes include other models within the FN2060 series with matching current and voltage ratings. Verify compatibility with existing mounting brackets and wiring configurations before replacing.
