FN2060-12-06

Overview

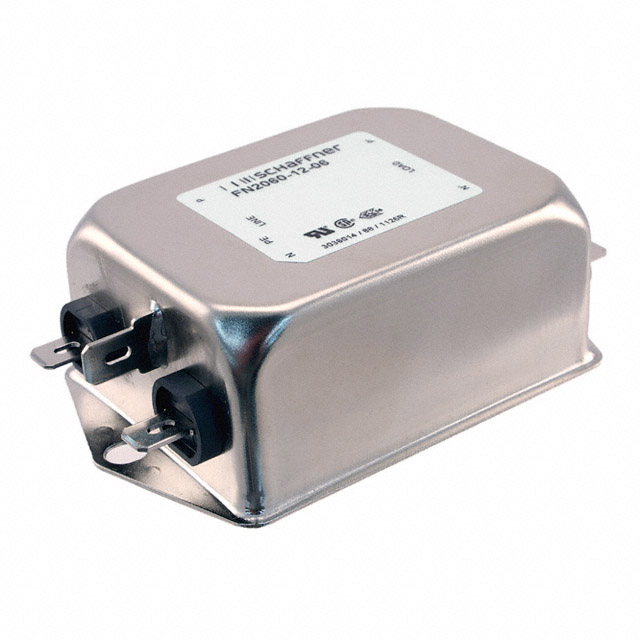

The Schaffner FN2060-12-06 is a single-phase EMI power line filter rated for 12 A and 250 V AC/DC. Designed for operation at frequencies up to 400 Hz, it utilizes a two-stage architecture with quick-connect terminals for chassis mounting. The component features an inductance of 970 µH and operates within a temperature range of -25°C to +100°C.

Feature Summary

• Two-stage filtering configuration for enhanced electromagnetic interference mitigation
• Chassis mount design with quick-connect termination style
• Rated for 400 Hz operational frequency environments

Applications

• Industrial automation systems requiring EMC compliance
• Climate control equipment power inputs
• General purpose electronic power supply filtering

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity or Schaffner documentation to ensure authenticity. Confirm that the quick-connect terminal specifications match your system requirements. Check for updated RoHS compliance declarations and environmental certifications prior to final procurement decisions.

Selection Notes

Select this model when a single-phase solution is required for 12 A circuits operating at 250 V AC/DC. Ensure the chassis mounting footprint accommodates the physical dimensions. Verify that the quick-connect terminal type aligns with existing wiring harnesses and that the 400 Hz frequency rating meets the application's operational needs.

Part Context

This component belongs to the FN2060 series of single-phase AC/DC chassis filters manufactured by Schaffner. The series provides robust EMI suppression for various industrial and commercial applications. It is part of TE Connectivity's broader portfolio of electromagnetic compatibility solutions designed for reliable performance in demanding electrical environments.

Replacement Considerations

Consult official datasheets for cross-reference information. No direct public substitute part numbers are confirmed in the provided source material.
