FN2060-12-07

Overview

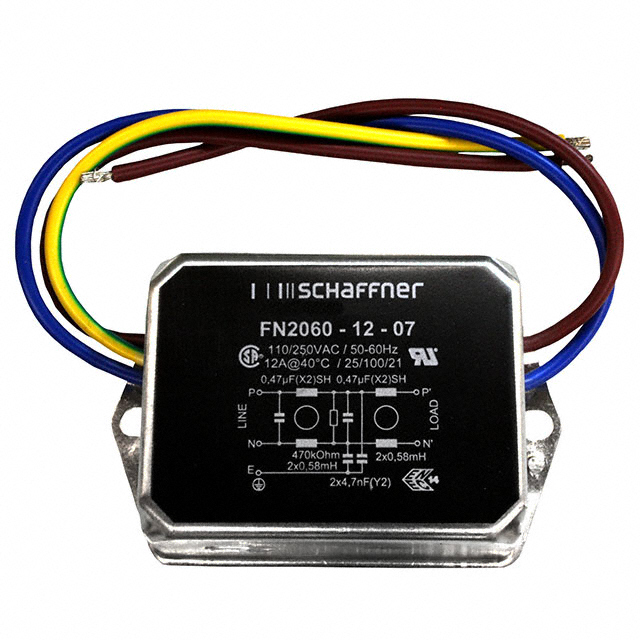

The Schaffner FN2060-12-07 is a single-phase, two-stage power line filter designed for chassis mounting. It features wire leads and supports a rated voltage of 250 VAC with a current rating of 12 A. The component operates within a frequency range of 0 Hz to 400 Hz and withstands temperatures from -25°C to +100°C. Key electrical parameters include a leakage current of 660 µA. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 30.3 mm in height, with a unit weight of 190 g.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount configuration with wire lead termination
• Certified compliance with UL and CSA safety standards

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• Electronic test and measurement instruments

Procurement Notes

Verify the specific suffix designation against official TE Connectivity Schaffner documentation to confirm terminal type and certification status. Ensure that the selected variant matches the required installation style and regulatory approvals for the target application environment. Cross-reference part numbers with authorized distributors to confirm availability and production lead times prior to ordering.

Selection Notes

Select this model when a single-phase, two-stage filter is required for 12 A applications up to 400 Hz. Confirm that the chassis mounting footprint and wire lead termination suit the assembly design. Verify that the 660 µA leakage current meets safety requirements for the connected load and enclosure grounding scheme.

Part Context

This component belongs to the FN2060 series of AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series provides multi-stage filtering solutions for single-phase applications. The FN2060-12-07 specifically denotes the 12 A current rating variant with wire leads, distinguishing it from screw-terminal or quick-connect versions within the same family.

Replacement Considerations

FN2060-12-08 serves as a comparable alternative within the series, offering identical electrical ratings but utilizing screw terminals instead of wire leads.
