FN2060-12-08

Overview

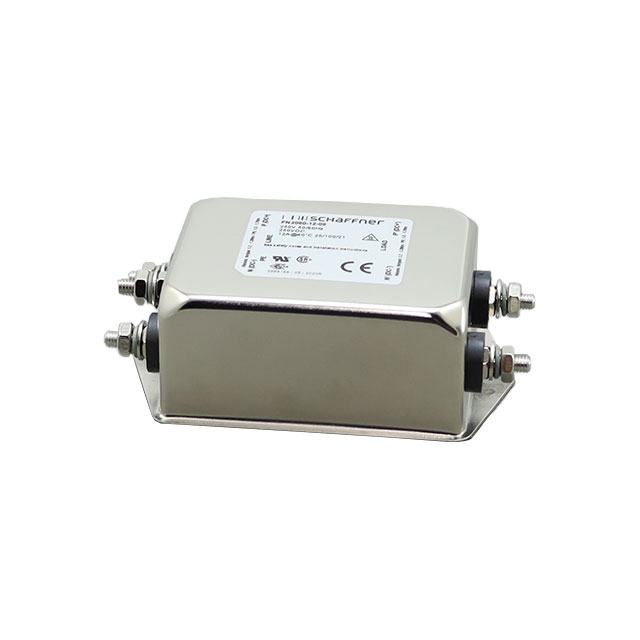

The FN2060-12-08 is a single-phase, two-stage power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with screw termination for secure installation. The unit is rated for 250 VAC and supports a continuous current of 12 A. Operating within a frequency range of 0 Hz to 400 Hz, it maintains a leakage current of 660 uA. Physical dimensions are 85 mm in length, 54 mm in width, and 30.3 mm in height, weighing 190 g. It complies with UL, CSA, and IEC/EN standards.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount construction with screw terminals for robust mechanical stability
• Certified compliance with major international safety standards including UL, CSA, and IEC/EN

Applications

• Industrial drive systems requiring EMI suppression
• Medical devices adhering to strict safety regulations
• Switched-mode power supplies

Procurement Notes

Verify the specific termination style and mounting configuration against system requirements before ordering. Confirm that the 12 A current rating and 250 VAC voltage limit align with the target circuit parameters. Ensure chassis space accommodates the specified physical dimensions. Check for updated certification documents if regulatory compliance is critical for the final assembly.

Selection Notes

Select this model when a single-phase, two-stage filter is required for chassis mounting. The 12 A rating suits moderate power applications. Compare with the FN2060-12-07 if wire termination is preferred over screw terminals. Consider the FN2060B series for alternative configurations within the same family. Verify thermal management needs given the +100 C maximum operating temperature.

Part Context

This component belongs to the FN2060 series of single-phase AC/DC chassis filters. The series is designed for renewable resources and general power conditioning. It shares common design principles with other models in the lineup, offering standardized mounting and performance characteristics for industrial EMC applications.

Replacement Considerations

The FN2060-12-07 serves as a functional substitute with identical electrical ratings but utilizes wire termination instead of screw posts. Verify terminal compatibility during replacement to ensure proper connection integrity.
