FN2060-16-06

Overview

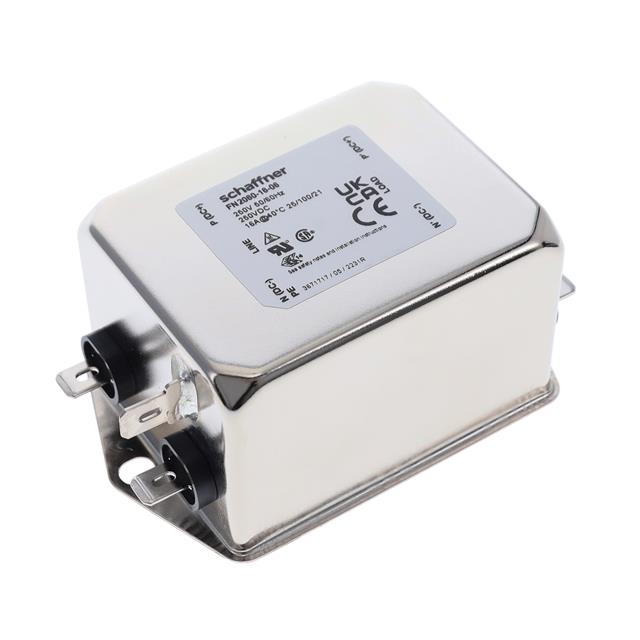

The Schaffner FN2060-16-06 is a single-phase EMI power line filter rated for 16 A at 250 V AC/DC. It operates within a frequency range of 0 Hz to 400 Hz and utilizes chassis mounting with quick-connect terminals. Key electrical parameters include an inductance of 650 µH, capacitance of 330 nF, and leakage current of 734 µA. The unit measures 85 mm in length, 54 mm in depth, and 40.3 mm in height, with a resistance of 1 mΩ. It functions reliably between -25°C and 100°C.

Feature Summary

• Multi-stage design providing medium-high attenuation for noisy applications
• Chassis mount construction with quick-connect terminals for secure installation
• Capable of handling DC to 400 Hz input frequencies

Applications

• Single-phase mains supply systems
• Noisy industrial environments requiring EMC compliance
• General purpose AC/DC equipment filtering

Procurement Notes

Verify the specific part number FN2060-16-06 against official TE Connectivity Schaffner documentation to confirm terminal type and rating. Ensure the application voltage does not exceed 250 V AC/DC. Confirm chassis mounting compatibility and thermal limits before integration. Cross-reference datasheets for exact leakage current specifications under operating conditions.

Selection Notes

Select this component for single-phase applications requiring 16 A continuous current. The multi-stage architecture suits noisy environments needing significant attenuation. Verify that the 734 µA leakage current is acceptable for the specific safety standards of the end equipment. Ensure the physical dimensions fit the available chassis space.

Part Context

This component belongs to the FN2060 series of single-phase AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series is designed for general-purpose EMC suppression in various electronic equipment. It shares common mounting styles and terminal configurations with other variants in the family, differing primarily in current ratings and internal component values.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
