FN2060-16-08

Overview

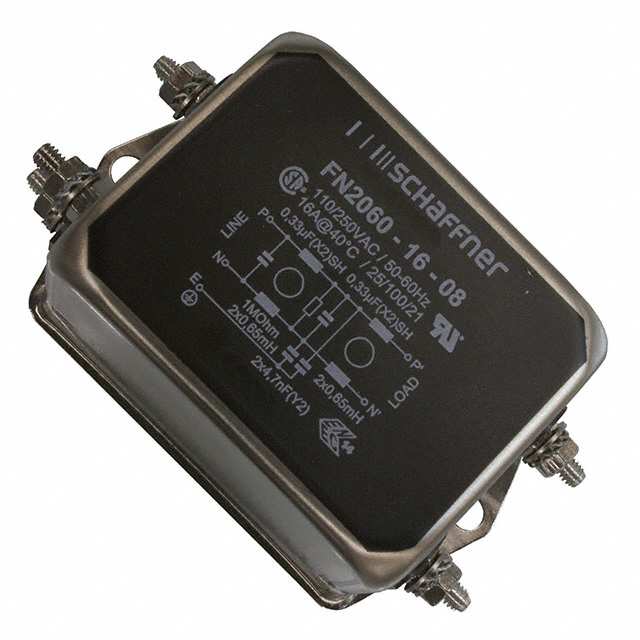

The Schaffner FN2060-16-08 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It features a rated current of 16 A and a voltage rating of 250 VAC. The component operates within a frequency range of 0 Hz to 400 Hz. Electrical specifications include a leakage current of 660 uA. Termination is achieved via threaded stud connections for both input and output. Physical dimensions are approximately 64.8 mm in length and 40.3 mm in height.

Feature Summary

• Provides multi-stage attenuation for electromagnetic interference suppression
• Utilizes threaded stud termination for secure mechanical and electrical connection
• Designed for direct chassis mounting to facilitate heat dissipation and stability

Applications

• Industrial machinery power supply filtering
• Medical equipment noise reduction
• Test and measurement instrument protection

Procurement Notes

Verify the specific suffix '08' corresponds to the required threaded stud configuration, as other variants may use different termination styles. Confirm compliance with relevant safety standards such as UL and CSA for the intended market. Ensure the 16 A current rating aligns with the system's maximum load requirements without derating issues.

Selection Notes

Select this model when high current capacity is required alongside effective EMI suppression in a compact form factor. The threaded stud interface is suitable for applications requiring robust mechanical anchoring. Consider the 660 uA leakage current limit to ensure it remains within safe limits for sensitive medical or personnel-protected environments.

Part Context

This component belongs to the FN2060 series of single-phase AC/DC chassis filters manufactured by TE Connectivity / Schaffner. The series is engineered for general-purpose EMC applications where reliable noise filtration is critical. It represents a standard solution for integrating power line filtering into industrial enclosures.

Replacement Considerations

Cross-reference part numbers such as FN2060A-16-06 if quick-connect terminals are acceptable instead of threaded studs. Verify that substitute models maintain identical current ratings and physical mounting dimensions to ensure compatibility with existing panel cutouts.
