Product Detailed Parameters
- Description：LINE FILTER 250VAC 20A CHASS MNT
- Series：FN 2060
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：20 A
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：600µH
Download product information
Overview

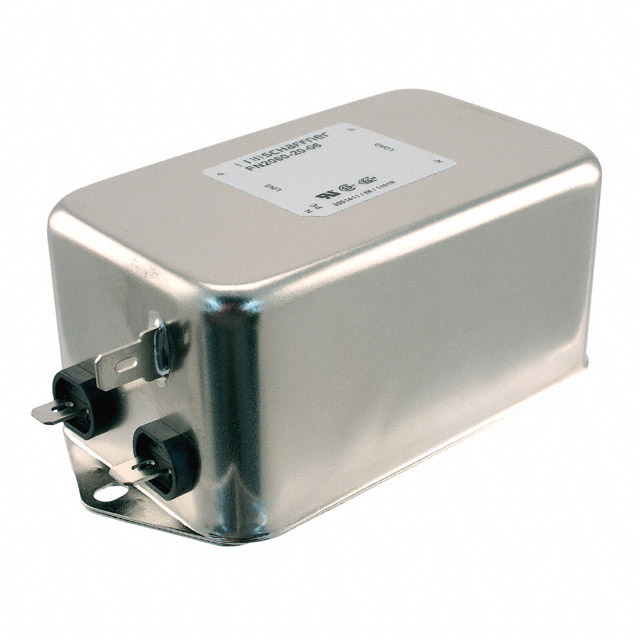

The Schaffner FN2060-20-06 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It supports a rated current of 20 A and operates at voltages up to 250 V AC/DC within a frequency range of DC to 400 Hz. Key electrical parameters include an inductance of 600 µH, capacitance of 4.7 nF, and leakage current of 0.734 mA. The unit features faston terminals and measures 113.5 mm in length, 57.5 mm in height, and 45.4 mm in depth. It functions reliably across a temperature range of -25°C to +100°C.
Feature Summary
- Two-stage filtering architecture for enhanced electromagnetic interference suppression
- Chassis mount design with faston terminal connections for secure installation
- Operational capability across a wide temperature range from -25°C to +100°C
Applications
- General-purpose industrial equipment protection
- Single-phase power supply noise reduction
- Electromagnetic compatibility enhancement in electronic systems
Procurement Notes
Verify the specific part number FN2060-20-06 against official TE Connectivity/Schaffner documentation to confirm ratings. Ensure the application environment matches the specified voltage, current, and temperature limits. Confirm terminal type compatibility with existing wiring harnesses before procurement.
Selection Notes
Select this component when a single-phase, high-current (20A) solution is required for chassis-mounted applications. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the physical dimensions fit the available enclosure space and that the operating frequency range aligns with the system's power requirements.
Part Context
This component belongs to the FN2060 series of single-phase EMC/EMI line filters manufactured by TE Connectivity under the Schaffner brand. The series is engineered for general-purpose industrial applications, providing robust protection against conducted electromagnetic interference in power lines.
FAQ
What is the maximum operating voltage for the FN2060-20-06?
The maximum input voltage rating is 250 V AC/DC.
Does the FN2060-20-06 support frequencies above 400 Hz?
No, the filter is designed for operation within a frequency range of DC to 400 Hz.
