FN2060-3-06

Overview

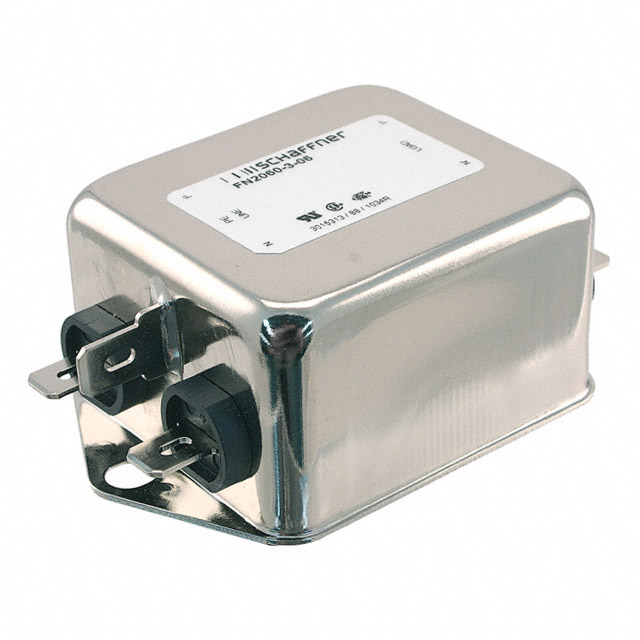

The Schaffner FN2060-3-06 is a single-phase, two-stage EMI/EMC power line filter designed for chassis mounting. It supports an AC voltage rating of 250 VAC and operates within a frequency range of 0 Hz to 400 Hz. The component has a current rating of 3 A and utilizes faston terminals for electrical connection. Key physical specifications include dimensions of 50.5 mm in length, 44.5 mm in width, and 29.3 mm in height, with a maximum operating temperature of +100°C and a minimum of -25°C. The unit exhibits a leakage current of 660 µA and holds UL, CSA, and IEC/EN compliance certifications.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design for secure mechanical installation
• Faston terminal configuration for straightforward wiring
• Compliance with major international safety standards

Applications

• Industrial control systems requiring EMI suppression
• Medical equipment power input stages
• Test and measurement instrumentation
• Renewable energy inverter inputs

Procurement Notes

Verify the specific part number FN2060-3-06 against official TE Connectivity/Schaffner datasheets to confirm compatibility with your system's voltage, current, and mounting requirements. Ensure that the faston terminal type matches your connector specifications. Check for updated RoHS and REACH declarations prior to procurement to meet regulatory standards.

Selection Notes

Select this model when a compact, single-phase filter is needed for applications up to 3 A at 250 VAC. The two-stage design offers superior performance compared to single-stage alternatives. Consider the chassis mounting style and faston termination when evaluating integration into existing enclosures or panels.

Part Context

This component belongs to the FN2060 series of single-phase AC/DC chassis filters manufactured by TE Connectivity under the Schaffner brand. The series is engineered for general-purpose EMI/EMC suppression in various electronic equipment. The FN2060-3-06 represents a specific variant within this family, distinguished by its 3 A current rating and standardized dimensions.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the specific electrical characteristics or certification status required for safety-critical applications.
