FN2060-3-07

Overview

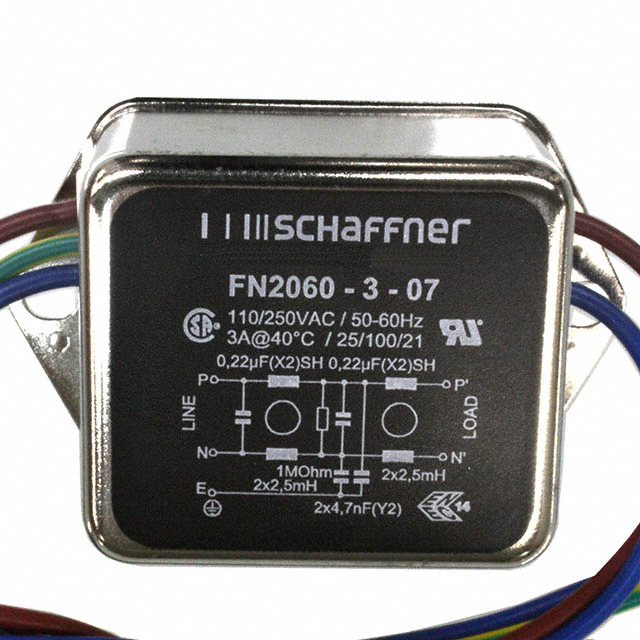

The Schaffner FN2060-3-07 is a single-phase, two-stage power line filter designed for chassis mounting. It features a rated current of 3A and a voltage rating of 250VAC. The component operates within a frequency range of 0 Hz to 400Hz. Key electrical parameters include an inductance of 2.5mH and a leakage current of 0.734mA. The unit supports a temperature range from -25°C to +100°C. Termination is achieved via quick-connect terminals.

Feature Summary

• Multi-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design for secure installation in equipment enclosures
• Quick-connect termination style for simplified wiring integration

Applications

• Industrial machinery power conditioning
• Medical equipment EMI reduction
• General purpose electronic systems requiring single-phase filtering

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm terminal type and certification status. Confirm that the required certifications align with regional regulatory standards before procurement. Ensure chassis mounting dimensions are compatible with the target enclosure layout. Validate thermal management requirements given the operating temperature limits.

Selection Notes

Select this model when a single-phase solution with a 3A current rating is required. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the quick-connect terminals match existing harness specifications. Consider the physical dimensions and weight constraints during the mechanical design phase.

Part Context

This component belongs to the FN2060 series of AC/DC chassis filters manufactured by TE Connectivity / Schaffner. The series provides various current ratings and termination options for different power line applications. These filters are engineered for robust performance in demanding industrial and commercial environments.

Replacement Considerations

Check for direct substitutes within the FN2060 series with identical current ratings. Verify compatibility of mounting holes and terminal spacing if considering alternative brands. Ensure replacement parts maintain equivalent leakage current and inductance values.
