FN2060-30-08

Overview

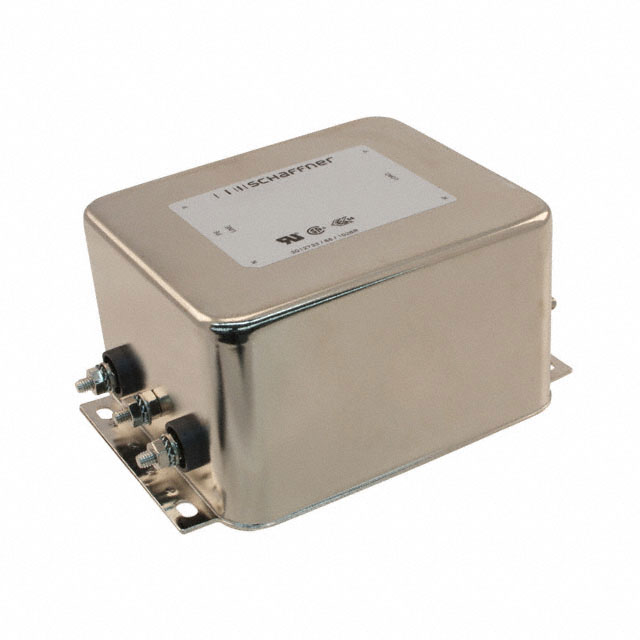

The FN2060-30-08 is a two-stage single-phase power line filter module manufactured by TE Connectivity Schaffner. It is designed for chassis mounting with a rated current of 30 A and a maximum voltage of 250 V AC/DC. The component operates within a frequency range of 0 Hz to 400 Hz, making it suitable for aerospace and industrial applications. Key electrical parameters include a leakage current of 1.41 mA. The unit features threaded post terminals (M4) for secure connection.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design for robust mechanical integration
• Threaded post terminal configuration for reliable electrical connections

Applications

• Aerospace power systems operating at 400Hz
• Industrial machinery requiring EMI mitigation
• Single-phase power distribution networks

Procurement Notes

Verify the specific datasheet version for the FN2060-30-08 to confirm terminal specifications and mounting dimensions. Ensure compatibility with M4 threaded posts and chassis cutouts. Cross-reference the 30A rating against actual load requirements. Confirm regulatory certifications such as UL or CSA if required for the target market. Validate the 400Hz operational frequency suitability for the application environment.

Selection Notes

Select this model when a two-stage filtration solution is required for single-phase circuits up to 30 Amperes. The 400Hz frequency rating distinguishes it from standard 50/60Hz filters, making it appropriate for specialized industrial or aviation contexts. Consider the chassis mounting style and M4 terminal type during mechanical design integration to ensure proper fit and electrical safety margins.

Part Context

This component belongs to the FN2060 series of single-phase EMC/EMI line filters. The series offers various current ratings and configurations tailored for different power levels. The FN2060-30-08 specifically addresses higher current demands within the 400Hz operational band, providing a standardized solution for chassis-mounted power conditioning in demanding environments.

Replacement Considerations

Consult official substitution guides for equivalent two-stage 30A 400Hz filters. Verify that any alternative part matches the M4 terminal pitch and chassis mounting footprint. Ensure the replacement maintains the same leakage current limits and certification status.
