FN2060-6-06

Overview

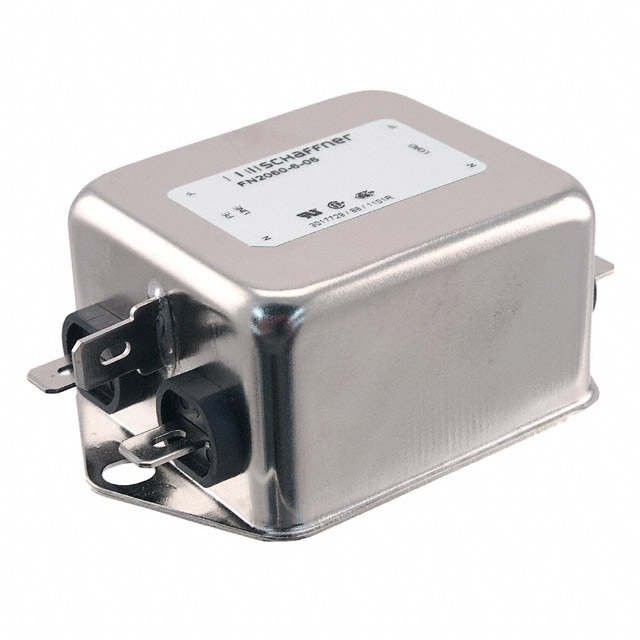

The Schaffner FN2060-6-06 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It supports an AC voltage rating of 250 VAC and operates within a frequency range of 0 Hz to 400 Hz. The component handles a continuous current of 6 A with a maximum leakage current of 660 µA. Key electrical parameters include a capacitance value of 220 nF and an inductance of 970 µH. It features faston terminals and functions effectively between -25°C and +100°C.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure installation
• Faston terminal configuration for rapid connection

Applications

• Industrial control systems
• Medical equipment
• Renewable energy inverters

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity or Schaffner documentation to ensure authenticity. Confirm that the terminal type matches the system requirements. Check compliance certifications such as UL, CSA, and IEC/EN for the target market. Ensure the operating temperature range aligns with the application environment.

Selection Notes

Select this model when a single-phase solution is required for frequencies up to 400 Hz. The 6 A rating suits moderate power applications. Verify that the chassis mounting style fits the enclosure design. Ensure the faston terminal interface is compatible with the wiring harness. Consider the physical dimensions for space-constrained installations.

Part Context

This component belongs to the FN2060 series of AC/DC chassis filters by Schaffner. The series is engineered for general-purpose EMC/EMI suppression in various electronic systems. It provides reliable performance in demanding environments while maintaining low leakage current characteristics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
