FN2060-6-07

Overview

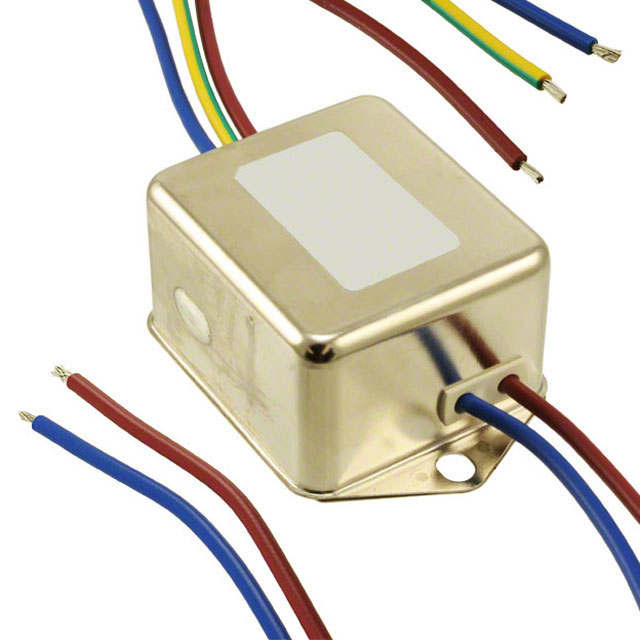

The FN2060-6-07 is a single-phase, two-stage power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount configuration with wire leads for termination. The component is rated for 6 A current and 250 VAC voltage, operating within a frequency range of 0 Hz to 400 Hz. Key electrical specifications include a leakage current of 660 uA. Physical dimensions are 50.5 mm in length, 44.5 mm in width, and 29.3 mm in height, with an operating temperature range from -25 C to +100 C. It holds UL, CSA, and IEC/EN compliance certifications.

Feature Summary

• Two-stage filtering architecture designed for effective EMI suppression
• Chassis mounting style with integrated wire leads
• Certified for international safety standards including UL and IEC

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• Telecommunications infrastructure

Procurement Notes

Verify the specific lead type designation (suffix -07) against official datasheets to ensure compatibility with existing wiring harnesses. Confirm that the 6 A rating aligns with the system's continuous load requirements. Check for updated RoHS compliance declarations and recent manufacturing change notices before finalizing procurement orders.

Selection Notes

Select this model when a compact, two-stage solution is required for single-phase applications up to 6 A. Ensure the chassis mount form factor fits the available enclosure space. Verify that the wire lead termination method matches the assembly process, as opposed to quick-connect or screw terminals found in other variants.

Part Context

This component belongs to the FN2060 series of AC/DC chassis filters. The series offers various current ratings and terminal configurations to suit different power levels. The FN2060-6-07 specifically addresses lower current needs with fixed wire leads, distinguishing it from higher-current models that utilize screw or quick-connect options.

Replacement Considerations

FN2060A-6-06 is a related variant within the same family offering similar electrical characteristics but potentially differing in terminal style or packaging details.
