FN2060A-12-06

Overview

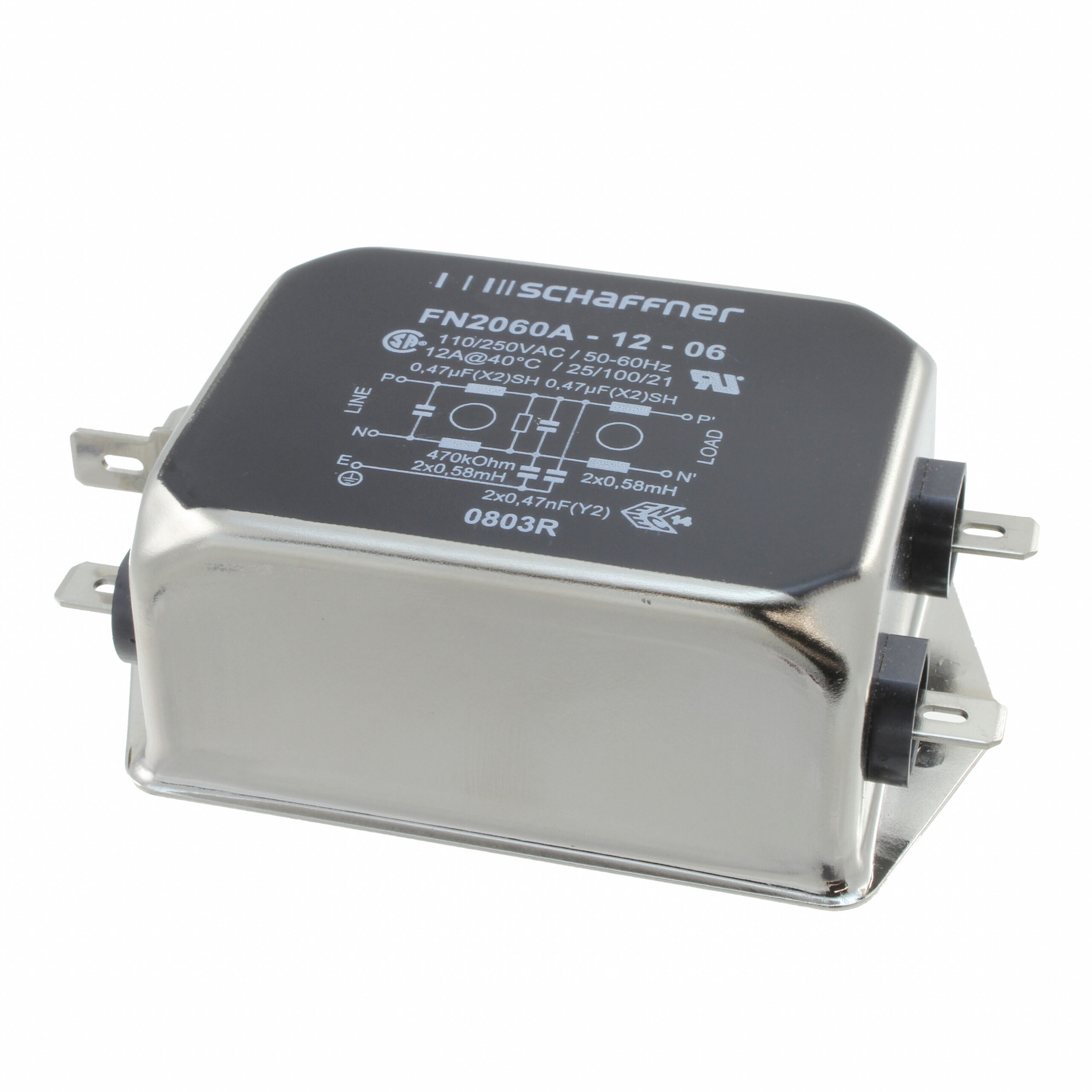

The Schaffner FN2060A-12-06 is a single-phase EMI power line filter designed for chassis mounting. It supports a maximum current of 12 A and operates at voltages up to 250 V AC/DC with a frequency range extending to 400 Hz. The component features a two-stage filtering configuration utilizing fast-on terminals for connection. Key electrical parameters include an inductance of 580 µH, a capacitance of 470 nF, and a leakage current of 734 µA. It functions within a temperature range of -25°C to 100°C and measures 85 mm in length, 54 mm in height, and 30.3 mm in depth.

Feature Summary

• Two-stage electromagnetic interference mitigation architecture
• Low leakage current design for safety compliance
• Chassis mount construction with fast-on termination style

Applications

• Industrial automation equipment
• Climate control systems
• Renewable resource inverters

Procurement Notes

Verify the specific part number suffix against official Schaffner documentation to confirm terminal type and certification status. Ensure the selected variant matches the required voltage and current ratings for the target application. Cross-reference datasheet specifications for mechanical dimensions and thermal limits before integration.

Selection Notes

Select this model for applications requiring single-phase filtering with high current capacity up to 12 A. The chassis mount form factor suits panel installations where space efficiency is critical. Verify that the operating environment remains within the specified -25°C to 100°C temperature range to ensure reliable performance.

Part Context

This component belongs to the FN2060 series of single-phase AC/DC chassis filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is engineered for general-purpose noise suppression in electronic systems requiring robust EMI protection and compact physical dimensions.

Replacement Considerations

FN2060-12-06 is a related variant within the same series.
