Product Detailed Parameters
- Description：LINE FILTER 250VAC 1A CHASS MNT
- Series：FN 2060
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：1:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：12mH
Download product information
Overview

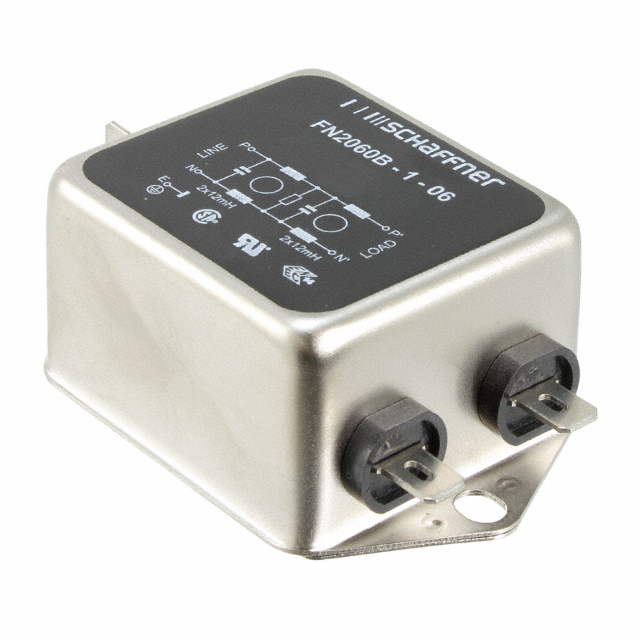

The Schaffner FN2060B-1-06 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 1 A. The component utilizes Faston terminals for electrical connection and operates within a frequency range of 0 Hz to 400 Hz. Certified for medical applications, it meets UL, CSA, and IEC/EN standards. The unit weighs approximately 120 g and functions between -25°C and +100°C.
Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- Medical safety certification compliance
- Chassis mount installation with Faston termination
Applications
- Medical equipment power input stages
- Industrial control systems requiring EMI protection
- General purpose AC power line filtering
Procurement Notes
Verify the specific suffix code against official TE Connectivity/Schaffner documentation to confirm medical grade classification and terminal type. Ensure chassis mounting hardware compatibility with the specified dimensions. Cross-reference the manufacturer part number with authorized distributors to validate authenticity and current production status before procurement.
Selection Notes
Select this model for applications requiring certified medical safety isolation and low current handling. Compare leakage current specifications against strict medical safety limits. Verify that the Faston terminal pitch matches the mating connector requirements. Consider thermal derating if operating near the maximum temperature limit.
Part Context
This component belongs to the FN2060 series of single-phase AC/DC chassis filters manufactured by TE Connectivity under the Schaffner brand. The series provides multi-stage filtering solutions for electromagnetic interference reduction in power supply inputs. The 'B' suffix typically denotes medical safety variants within this product family.
Replacement Considerations
FN2060A-1-06
FAQ
What is the maximum operating temperature for the FN2060B-1-06?
The maximum operating temperature is +100°C.
Does this filter support DC input?
Yes, the datasheet specifies it as an AC/DC filter with a frequency range starting from 0 Hz.
