FN2060B-10-06

$28.66

Description：LINE FILTER 250VAC 10A CHASS MNT
Series：FN 2060
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:4119f2650469 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 10A CHASS MNT
Series：FN 2060
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：10:00 AM
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：800µH

Download product information

FN2060B-10-06

Overview

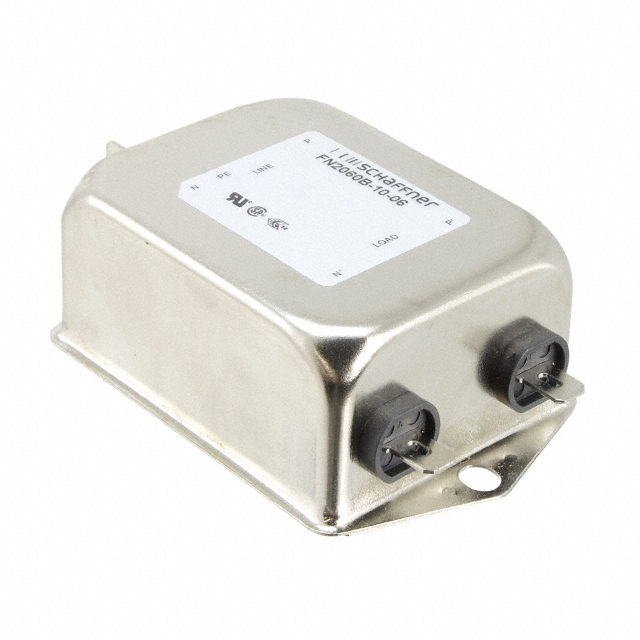

The Schaffner FN2060B-10-06 is a single-phase, two-stage EMI/EMC power line filter designed for chassis mounting. It features a rated current of 10 A and a voltage rating of 250 VAC/DC, with an operating frequency range of 0 Hz to 400 Hz. The component utilizes Faston terminals for connection and exhibits a leakage current of 660 uA. Certified under UL, CSA, and IEC/EN standards, it operates within a temperature range of -25°C to +100°C. Physical dimensions are approximately 64.8 mm in length, 49.8 mm in width, and 30.3 mm in height.

Feature Summary

Two-stage filtering architecture for enhanced noise attenuation
Medical-grade certification compliance
Chassis mount design with Faston quick-connect terminals

Applications

Medical equipment power input stages
Industrial machinery EMC suppression
General purpose AC/DC power line filtering

Procurement Notes

Verify the specific suffix 'B' against the manufacturer's official datasheet to confirm medical grade classification and terminal specifications. Ensure the required leakage current limits align with the 660 uA specification provided in public documentation. Confirm chassis mounting hole patterns match the physical dimensions listed.

Selection Notes

Select this model when a two-stage solution is required for 10 A applications with strict medical safety certifications. The Faston termination style suits panel integration where screw terminals are impractical. Verify that the 660 uA leakage current is acceptable for the specific downstream circuitry and safety ground requirements.

Part Context

This component belongs to the FN2060 series by TE Connectivity / Schaffner, which specializes in single-phase EMI filters. The series offers various current ratings and mounting options. The FN2060B variant specifically denotes medical application suitability, distinguishing it from standard industrial counterparts within the same family.
