FN2060B-3-06

Overview

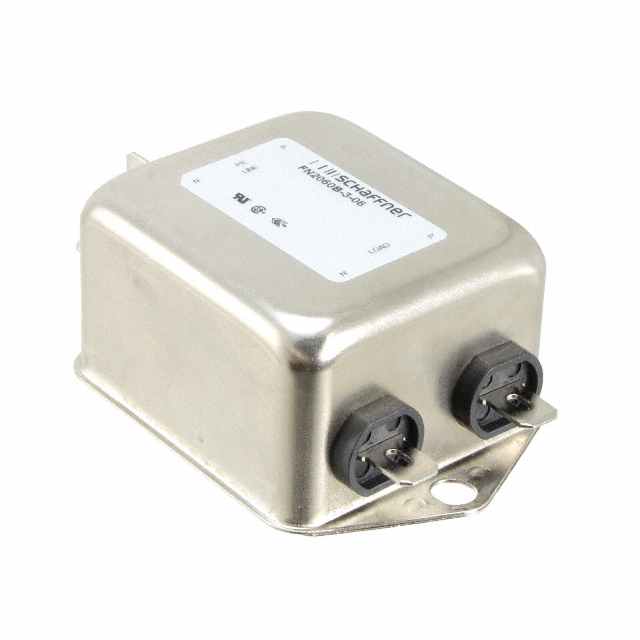

The Schaffner FN2060B-3-06 is a single-phase EMI line filter designed for chassis mounting. It supports a maximum current of 3 A and operates at voltages up to 250 V AC/DC within a frequency range of DC to 400 Hz. The component utilizes a two-stage configuration with quick-connect terminals for circuit attachment. Key electrical parameters include an inductance of 970 µH, a capacitance value of 100 nF, and a leakage current of 2 µA. It functions reliably within an operating temperature range of -25°C to 100°C.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mounting design for secure installation
• Quick-connect terminal style for simplified wiring

Applications

• Single-phase power line filtering
• EMC/EMI suppression in electronic equipment
• Industrial control systems

Procurement Notes

Verify the manufacturer part number against official TE Connectivity Schaffner documentation to confirm specifications. Ensure the application environment matches the rated voltage, current, and temperature limits. Confirm that the quick-connect terminal type aligns with existing harness requirements. Check for specific certification needs such as CE or CSA before procurement.

Selection Notes

Select this model when a single-phase, chassis-mountable solution is required for low-current applications up to 3 A. The two-stage design offers higher attenuation compared to single-stage alternatives. Verify that the physical dimensions and terminal spacing fit the available chassis space. Consider the 400 Hz operational limit if used in aerospace or specialized industrial contexts.

Part Context

This component belongs to the FN2060 series of single-phase AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series is engineered for general-purpose electromagnetic interference suppression in compact enclosures. The 'B' suffix typically denotes specific internal component variations within the product family.

Replacement Considerations

FN2060A-3-06 is a confirmed substitute within the same series offering identical current and voltage ratings.
