FN2070-1-07

Overview

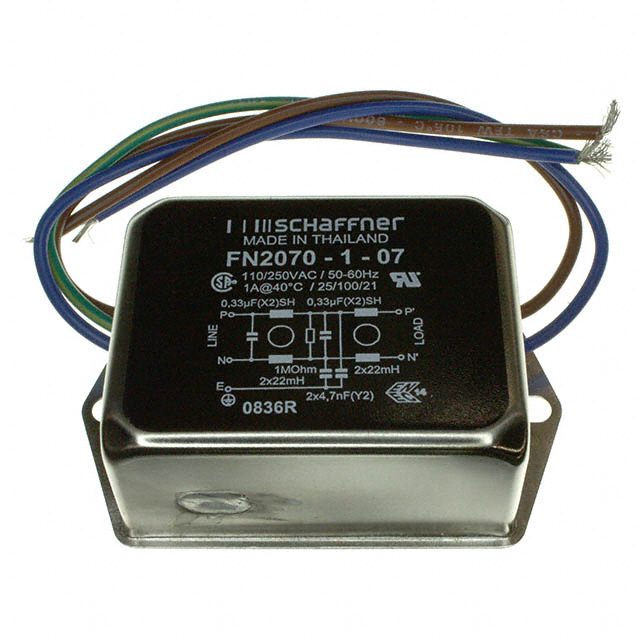

The Schaffner FN2070-1-07 is a single-phase EMI/EMC line filter designed for chassis mounting. It operates within a frequency range of DC to 400Hz and supports rated voltages of 110VAC and 250VAC. The component handles a maximum current of 1A and features a two-stage configuration with quick-connect termination style. Key electrical specifications include an inductance of 9.8mH. It is certified by CSA, ENEC, and UR agencies.

Feature Summary

• Provides effective electromagnetic interference suppression for single-phase power lines
• Designed for secure chassis mounting applications
• Utilizes quick-connect terminals for simplified integration

Applications

• General purpose electronic equipment power filtering
• Industrial control systems requiring EMI reduction
• Medical device power input stages

Procurement Notes

Verify the exact part number FN2070-1-07 against official Schaffner datasheets to ensure correct current rating and terminal type. Confirm that the required certifications (CSA, ENEC, UR) meet your regional regulatory standards before procurement. Check for RoHS compliance status if environmental regulations apply to your specific deployment environment.

Selection Notes

Select this model when a low-current (1A) single-phase filter is required for chassis installation. Ensure the operating voltage matches your system's 110V or 250VAC requirements. Verify that the quick-connect termination style aligns with your PCB or wiring harness design constraints.

Part Context

This component belongs to the FN2070 series of AC/DC chassis filters manufactured by Schaffner EMC Inc. The series offers various current ratings and configurations for general-purpose EMI suppression. The FN2070-1-07 specifically addresses low-current applications within the broader product family.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Schaffner technical support for direct equivalents.
