FN2070-10-06

Overview

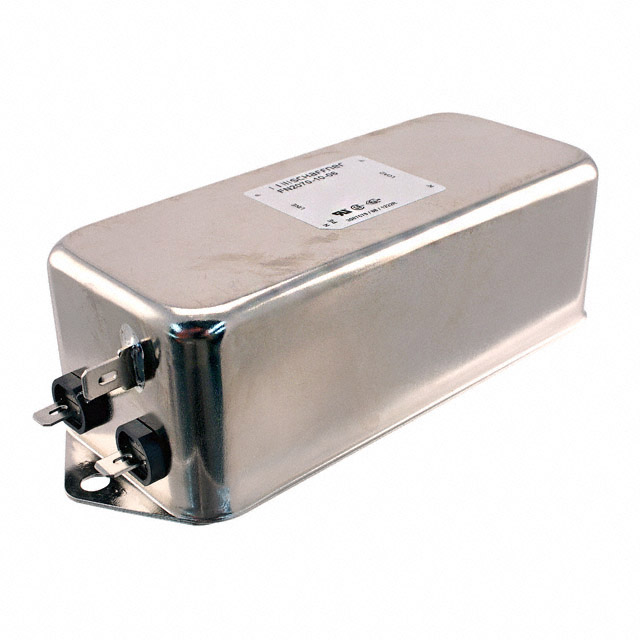

The Schaffner FN2070-10-06 is a single-phase, two-stage EMI/EMC power line filter designed for chassis mounting. It supports AC voltages of 110V and 250V with a rated current of 10A. The device operates within a frequency range of 0 Hz to 400 Hz and features faston terminal connections. Key electrical specifications include a leakage current of 660 µA and compliance with UL, CSA, and IEC/EN standards. Physical dimensions are 130.5 mm in length, 56 mm in width, and 45.4 mm in height.

Feature Summary

• Two-stage filtering architecture for enhanced conducted noise attenuation
• Chassis mount design for secure installation
• Faston terminal interface for rapid connection

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• Telecommunications infrastructure

Procurement Notes

Verify the specific datasheet version for the FN2070-10-06 to confirm current regulatory certifications and mechanical tolerances. Ensure that the receiving system supports the specified 10A current rating and 250VAC voltage limit. Confirm that the faston terminal type matches the mating connector specifications in the target application design to ensure proper electrical contact and mechanical stability.

Selection Notes

Select this component when a single-phase, two-stage filter is required for applications operating up to 400 Hz. The 10A current rating and chassis mount style define the physical and electrical constraints. Verify that the faston termination method aligns with the assembly process and that the 660 µA leakage current is acceptable for the sensitive load requirements.

Part Context

This part belongs to the FN2070 series of single-phase EMC filters manufactured by TE Connectivity / Schaffner. The series provides multi-stage performance options for various current ratings. The FN2070-10-06 specifically addresses the 10A requirement within this lineup, offering a standardized solution for chassis-mounted power line filtering in industrial and commercial environments.

Replacement Considerations

Publicly confirmed substitute part numbers for the FN2070-10-06 were not identified in the provided source material.
