FN2070-10-08

Overview

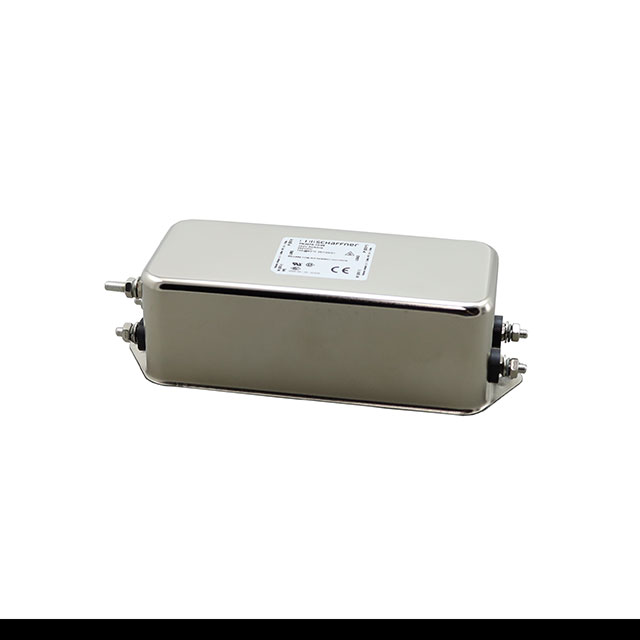

The Schaffner FN2070-10-08 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It supports AC/DC voltages up to 250V and handles a maximum current of 10A within a frequency range of 0Hz to 400Hz. Key electrical parameters include a leakage current of 660µA, an inductance of 4.5mH, and a capacitance of 4.7nF. The unit features screw terminations and operates between -25°C and +100°C. Physical dimensions are 156mm in length, 57.5mm in width, and 45.5mm in height, with a weight of approximately 670g.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design with screw termination connections
• Certified compliance with UL, CSA, and IEC/EN standards

Applications

• Industrial machinery power conditioning
• Medical equipment electromagnetic compatibility
• Avionics and ground support systems operating at 400Hz

Procurement Notes

Verify the specific suffix code against official datasheets to confirm terminal type and certification status. Confirm lead times as production schedules vary by region. Ensure chassis mounting holes align with installation requirements before ordering.

Selection Notes

Select this model for applications requiring robust single-phase filtration at 10A. Verify that the 660µA leakage current meets safety isolation limits. Compare physical dimensions against available panel space to ensure proper fitment.

Part Context

Part of the FN2070 series, which offers high-performance EMI filtration for sensitive electronic loads. The series provides reliable noise suppression across various industrial and commercial environments while maintaining low insertion loss.

Replacement Considerations

FN2070-10-07 is a similar variant within the same series but utilizes wire terminations instead of screw terminals. Verify terminal compatibility before substitution.
