FN2070-12-06

Overview

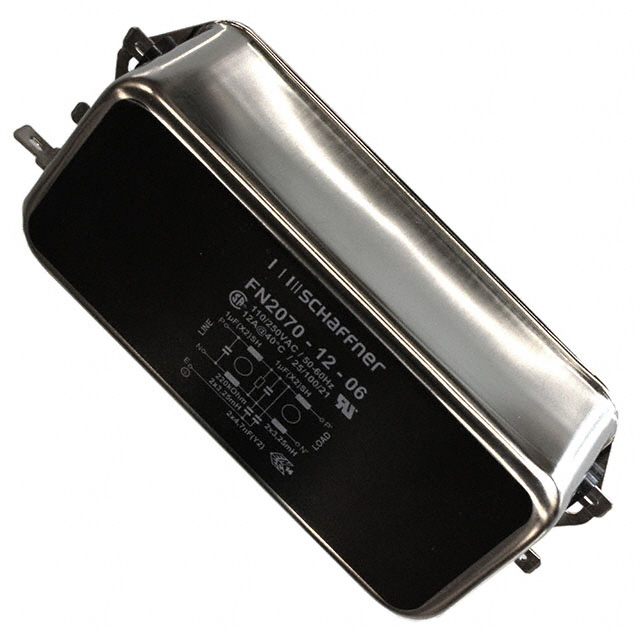

The FN2070-12-06 is a single-phase, two-stage power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with faston termination style. The component has a voltage rating of 250 VAC and a current rating of 12 A. It operates within a frequency range of 0 Hz to 400 Hz. The leakage current is specified at 660 uA. Physical dimensions include a length of 130 mm, width of 56 mm, and height of 45.4 mm. The unit weighs approximately 530.7 g and functions within a temperature range of -25 C to +100 C.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mounting configuration for secure installation in equipment enclosures
• Faston terminal interface for straightforward electrical connection

Applications

• Industrial machinery power supply conditioning
• Medical device internal power filtering
• Test and measurement equipment EMC compliance

Procurement Notes

Verify the specific termination style and physical dimensions against your enclosure requirements before ordering. Confirm that the 12 A current rating aligns with your system's maximum load. Ensure the chassis mounting holes match your panel layout. Check for updated certification marks such as UL or CSA if required for your target market compliance standards.

Selection Notes

Select this model when a two-stage filter is necessary for higher attenuation requirements compared to single-stage alternatives. The 12 A rating suits moderate power applications. Consider the faston terminals if wire harness integration is preferred over screw connections. Evaluate the 660 uA leakage current against safety regulations for sensitive medical or consumer electronics.

Part Context

This component belongs to the FN2070 series of AC/DC chassis filters. The series offers various current ratings and termination options. The FN2070-12-06 specifically addresses the 12 A requirement within this family. It provides a standardized solution for single-phase power line filtering in compact industrial and commercial environments.

Replacement Considerations

FN2070B-6-06 serves as a related variant within the same series but differs in current rating and potentially dimensions. Verify compatibility if substituting with other Schaffner models. No direct cross-manufacturer equivalents are confirmed in the provided documentation.
