FN2070-12-08

Overview

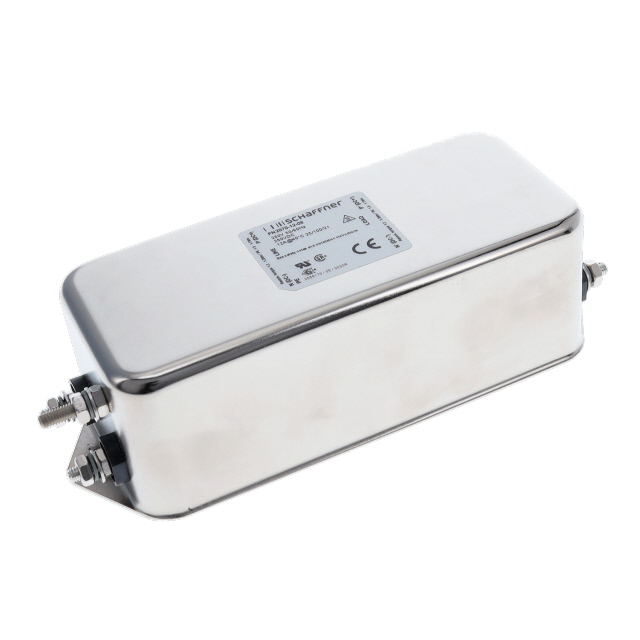

The FN2070-12-08 is a single-phase EMC/EMI power line filter from the Schaffner FN2070 series. It features a two-stage design with threaded stud input and output connections (M4). Rated for 12 A current at AC voltages of 110 V and 250 V, it operates within a frequency range of DC to 400 Hz. The unit supports chassis mounting and includes certifications from UL, CSA, and IEC/EN standards.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Threaded stud terminals for secure mechanical and electrical connection
• Chassis mount configuration for industrial integration

Applications

• Industrial power supply units
• Battery charging systems
• Energy-efficient electronic equipment

Procurement Notes

Verify the specific suffix codes against official TE Connectivity Schaffner documentation to ensure correct terminal type and rating alignment. Confirm that the M4 threaded stud specification matches the host equipment requirements. Cross-reference certification marks such as UL and CSA with local regulatory mandates before finalizing procurement decisions.

Selection Notes

Select this component when a robust, two-stage EMI solution is required for single-phase AC lines up to 12 A. Ensure the chassis mounting footprint accommodates the physical dimensions. Verify that the operating temperature range of -25°C to +100°C meets the environmental conditions of the target application site.

Part Context

This model belongs to the FN2070 series of high-performance single-phase filters by TE Connectivity Schaffner. The series is engineered for general-purpose applications requiring reliable electromagnetic interference reduction in power circuits. The product maintains compliance with major international safety and emissions standards.

Replacement Considerations

Consult official substitution guides for equivalent ratings. Generic cross-references may lack verified compatibility with the specific threaded stud interface and internal circuit topology.
