FN2070-16-06

Overview

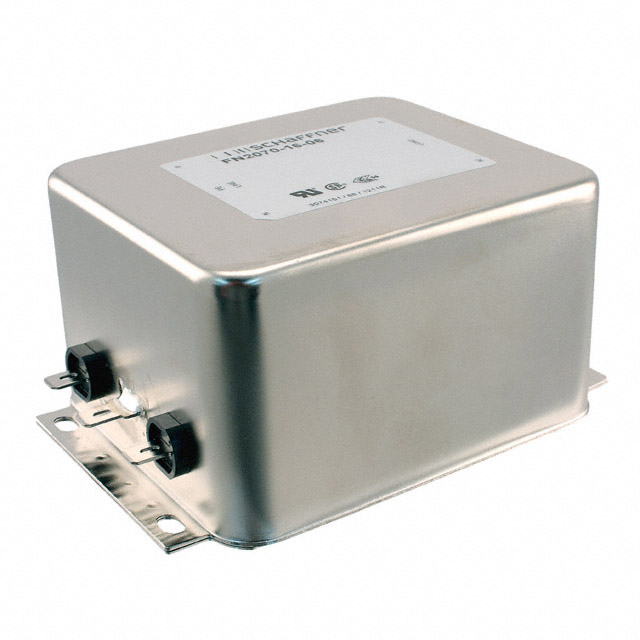

The Schaffner FN2070-16-06 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It supports a rated current of 16 A and operates at voltages up to 250 VAC. The component functions within a frequency range of 0 Hz to 400 Hz, making it suitable for standard and aviation power systems. It utilizes faston terminals for connection and maintains a maximum operating temperature of +100°C with a minimum of -25°C. Key electrical specifications include a leakage current of 660 µA and compliance with UL, CSA, and IEC/EN standards.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design for secure installation in equipment enclosures
• Faston terminal configuration for rapid circuit integration

Applications

• Industrial machinery power conditioning
• Avionic ground support equipment
• Medical device power supplies

Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm terminal type and certification requirements. Ensure the input voltage rating matches the system's nominal AC voltage. Confirm that the chassis mounting dimensions align with the available panel space. Check for updated RoHS compliance declarations prior to final procurement authorization.

Selection Notes

Select this model when high current capacity is required alongside robust EMI attenuation in a compact chassis-mount form factor. The two-stage design provides superior noise reduction compared to single-stage alternatives. Ensure the application environment stays within the specified -25°C to +100°C operational temperature range. Verify that the 16 A continuous current rating exceeds the peak load demands of the connected equipment.

Part Context

This component belongs to the FN2070 series of single-phase AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series is engineered for general-purpose applications requiring reliable power line filtering. The part number indicates a 16 A current rating and specific terminal configuration within the broader product family.

Replacement Considerations

FN2070B-16-06 is listed as an alternative variant within the same series.
