FN2070-16-07

Overview

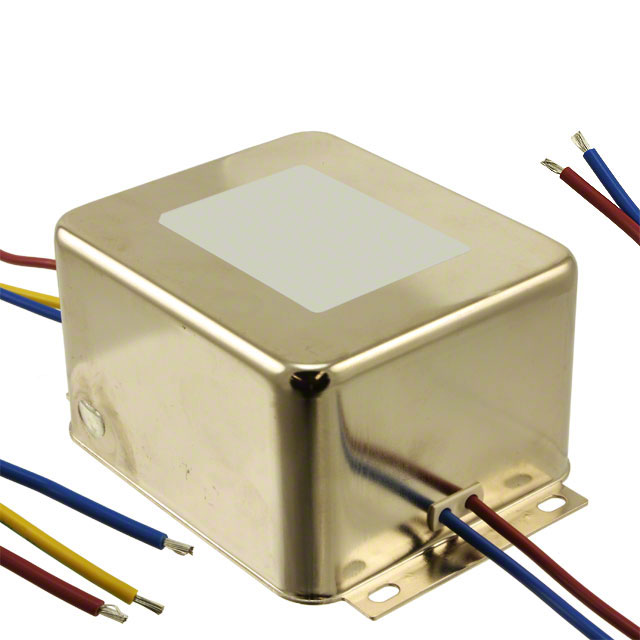

The Schaffner FN2070-16-07 is a single-phase, two-stage EMI/EMC line filter designed for chassis mounting. It supports a maximum current of 16 A and operates at voltages up to 250 V AC or DC within a frequency range of 0 Hz to 400 Hz. The component utilizes wire lead termination for circuit integration. Key electrical parameters include an inductance of 2.8 mH and a capacitance value of 4.7 nF. It features a low leakage current of 0.734 mA and a power loss rating of 9.6 W. The unit is engineered for operation within a temperature range of -25°C to +100°C.

Feature Summary

• Provides two-stage attenuation for effective suppression of electromagnetic interference in single-phase circuits.
• Engineered for high-performance filtering applications across AC and DC power lines up to 400 Hz.
• Designed with robust chassis mounting capabilities and wire lead connections for secure installation.

Applications

• Industrial equipment requiring EMI suppression
• Medical devices needing compliant power line filtering
• Test and measurement instrumentation

Procurement Notes

Verify the specific suffix configuration against official datasheets to ensure correct termination style and performance characteristics. Confirm that the 16 A current rating and 250 V voltage limits align with the target system requirements. Check for updated certification statuses such as UL, CSA, and IEC/EN compliance before finalizing procurement decisions.

Selection Notes

Select this model when a single-phase solution with 16 A capacity is required for frequencies up to 400 Hz. Ensure the application environment falls within the specified -25°C to +100°C operating temperature range. Verify that chassis mounting and wire lead terminations are compatible with the mechanical design constraints of the host equipment.

Part Context

This component belongs to the FN2070 series of high-performance single-phase filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is recognized for providing reliable EMI/RFI suppression in demanding environments. The FN2070-16-07 variant specifically addresses needs for moderate current handling with efficient noise reduction capabilities.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not identified in the provided source material. Consult official manufacturer documentation for potential cross-references or updated equivalents.
