FN2070-16-08

Overview

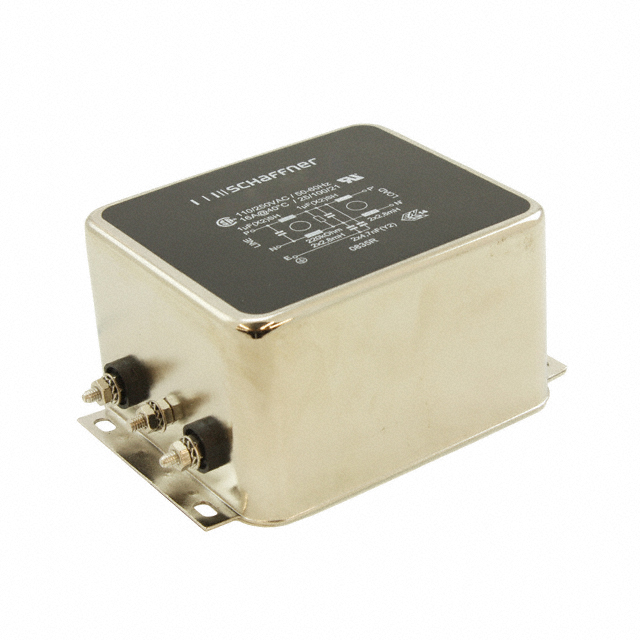

The Schaffner FN2070-16-08 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It supports a maximum current of 16 A and operates at voltages up to 250 V AC/DC within a frequency range of 0 Hz to 400 Hz. Key electrical parameters include a capacitance value of 4.7 nF, an inductance of 2.8 mH, and a leakage current of 660 uA. The unit features screw terminals and has physical dimensions of 98.5 mm in length, 84.5 mm in width, and 57.6 mm in height. It functions reliably within a temperature range of -25°C to +100°C.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design with screw terminal connections for secure installation
• Operational capability across DC to 400 Hz frequency spectrum

Applications

• Industrial equipment requiring EMI suppression
• Power supply units operating at 400 Hz
• Medical devices needing certified line filtering

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity / Schaffner documentation to ensure accuracy. Confirm that the required certifications such as UL, CSA, and IEC/EN meet your regional regulatory standards. Check the datasheet for precise mechanical tolerances and terminal specifications before integration into your assembly process.

Selection Notes

Select this component when a single-phase solution is required for systems operating up to 16 A. Ensure the application environment stays within the specified -25°C to +100°C operating temperature range. Verify that the chassis mounting style and screw terminal configuration align with your enclosure design and wiring requirements.

Part Context

This component belongs to the FN2070 series of AC/DC chassis filters manufactured by TE Connectivity / Schaffner. The series provides single-phase filtering solutions for various industrial and commercial applications. The FN2070-16-08 variant specifically addresses higher current demands while maintaining compact physical dimensions suitable for panel or chassis integration.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternatives. Cross-reference technical specifications carefully to ensure compatibility with existing system constraints.
