FN2070-6-06

Overview

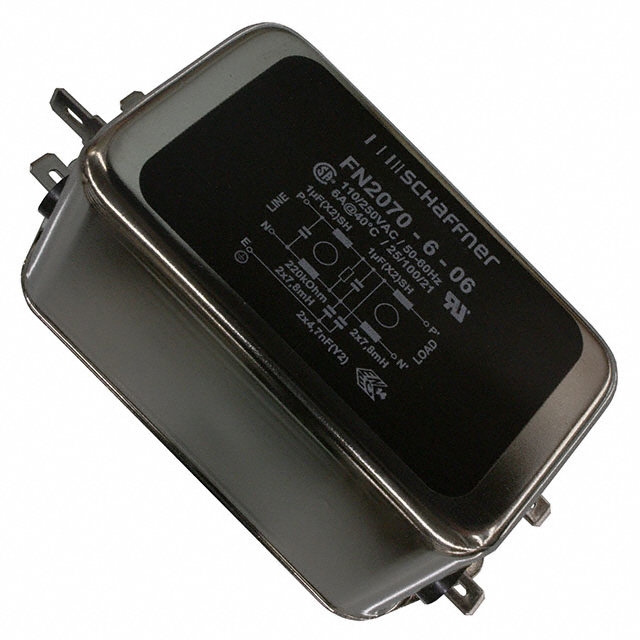

The Schaffner FN2070-6-06 is a single-phase, two-stage EMI/EMC line filter designed for chassis mounting. It supports rated voltages of 110V and 250V AC/DC with a maximum current of 6A. The component operates within a frequency range of DC to 400Hz. Key electrical parameters include an inductance of 7.8mH, capacitance of 1µF, and leakage current of 2µA. It utilizes quick connect terminals and functions reliably between -25°C and 100°C.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure installation
• Quick connect terminal style for simplified wiring

Applications

• General purpose EMC/EMI line filtering
• Safety applications requiring certified components

Procurement Notes

Verify the specific part number suffix against official TE Connectivity Schaffner documentation to confirm terminal type and certification status. Ensure the selected variant matches the required voltage rating and current capacity for the target application. Cross-reference datasheets for precise dimensional and thermal specifications before integration.

Selection Notes

Select this model for applications requiring single-phase filtering at 6A with quick connect termination. Consider the operating temperature range and physical dimensions for chassis integration. Verify compliance requirements such as UL or CSA if applicable to the end equipment. Compare inductance values against system noise profiles to ensure adequate attenuation.

Part Context

This component belongs to the FN2070 series of single-phase AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series offers various current ratings and terminal configurations. The FN2070-6-06 specifically denotes the 6A variant with quick connect terminals, providing a compact solution for electromagnetic interference mitigation in power lines.

Replacement Considerations

FN2070B-6-06 is listed as an available substitute.
