FN2070A-10-06

Overview

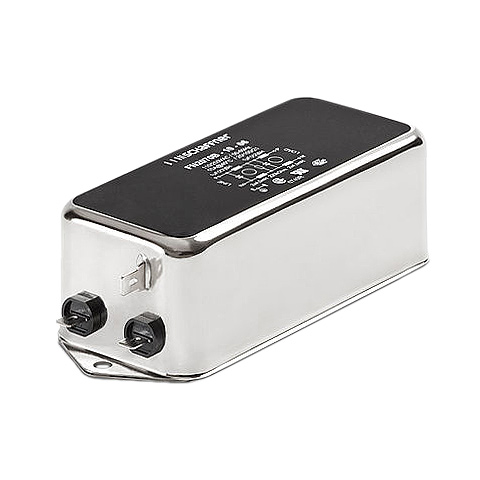

The FN2070A-10-06 is a single-phase, two-stage EMI/EMC power line filter manufactured by TE Connectivity Schaffner. It features a chassis mount design with Faston quick-connect terminals for secure installation. The unit is rated for 10 A current and 250 VAC voltage, operating within a frequency range of DC to 400 Hz. Physical dimensions are 130.5 mm in length, 56 mm in width, and 45.4 mm in height, weighing approximately 535 g. It complies with UL, CSA, and IEC/EN safety standards.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mounting configuration for stable mechanical integration
• Faston terminal interface for rapid electrical connection

Applications

• Industrial equipment power conditioning
• Medical device power supply input protection
• General purpose electronic systems requiring EMI suppression

Procurement Notes

Verify the specific suffix code against official datasheets to confirm terminal type and lead configuration. Ensure the chassis mounting hole pattern matches the enclosure design. Confirm that the 10 A rating aligns with the system's continuous load requirements and that the Faston connector gauge is compatible with the wiring harness.

Selection Notes

Select this model when a single-phase solution is required for frequencies up to 400 Hz. The two-stage design offers higher attenuation than single-stage alternatives. Verify that the physical footprint fits the available chassis space. Consider the leakage current specifications if strict safety isolation limits apply to the final application environment.

Part Context

This component belongs to the FN2070 series of AC/DC chassis filters from Schaffner. The series provides various current ratings and terminal options for different power levels. The FN2070A variant specifically denotes the standard chassis mount version with Faston connections, distinct from plug-in or PCB-mounted variants in the broader product family.

Replacement Considerations

FN2070-10-06 is a verified substitute part number for this component.
