FN2070B-16-06

Overview

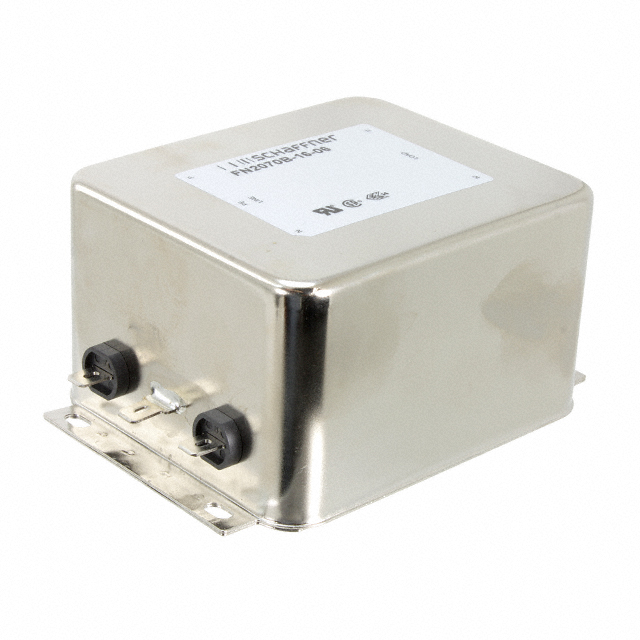

The Schaffner FN2070B-16-06 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It supports a rated current of 16 A and operates at AC voltages of 110 V and 250 V within a frequency range of DC to 400 Hz. The component features a two-stage configuration with quick connect terminals. Key electrical parameters include an inductance of 7.8 mH, a leakage current of 2 μA, and a capacitance of 1 F. It functions reliably within a temperature range of -25 °C to 100 °C.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure installation
• Quick connect terminal style for simplified wiring

Applications

• Medical device power input stages
• Industrial equipment EMI mitigation
• General purpose AC power line filtering

Procurement Notes

Verify the specific part number suffix against official TE Connectivity Schaffner documentation to confirm terminal type and current rating. Ensure compatibility with existing chassis mounting holes and wire gauge requirements for the 16 A rating. Cross-reference certification marks such as CSA, ENEC, and UR if required by regional safety standards before finalizing procurement.

Selection Notes

Select this model when a single-phase filter with a 16 A continuous current capacity is required. The two-stage design provides superior attenuation compared to single-stage alternatives. Verify that the operating environment remains within the specified -25 °C to 100 °C temperature range. Confirm that the quick connect terminal style matches the available harness or PCB interface constraints.

Part Context

This component belongs to the FN 2070 series of AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series is engineered for general-purpose and medical applications requiring robust EMI/EMC performance. The FN2070B variant specifically denotes the chassis-mountable version with defined electrical characteristics for high-current AC lines.

Replacement Considerations

Publicly confirmed substitute part numbers are not provided in the source material. Consult official manufacturer cross-reference guides for verified equivalents.
