FN2070L-36-08

Overview

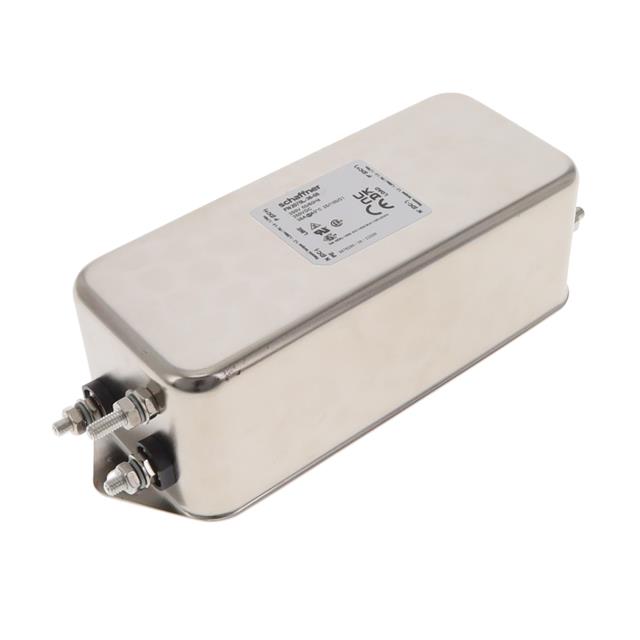

The FN2070L-36-08 is a single-phase, two-stage power line filter manufactured by TE Connectivity Schaffner. It features a chassis mount design with screw termination for secure electrical connections. The unit is rated for 36 A current and 250 VAC voltage, operating within a frequency range of 0 Hz to 400 Hz. Key electrical parameters include an inductance of 1.23 mH, capacitance of 33 uF, and leakage current of 2.59 mA. Physical dimensions are 130.5 mm in length, 56 mm in width, and 45.4 mm in height, with a weight of 790 g. It complies with UL, CSA, and IEC/EN standards.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount construction for stable installation in industrial enclosures
• Screw terminal interface ensuring robust electrical connectivity
• Certified compliance with major international safety standards

Applications

• Industrial machinery power conditioning
• Medical equipment EMI mitigation
• Test and measurement instrument protection
• Power supply input filtering

Procurement Notes

Verify the specific suffix 'L' against official datasheets to confirm it denotes the correct variant within the FN2070 series, as ordering codes can be sensitive to minor character changes. Confirm that the 36A rating aligns with your system's continuous load requirements. Ensure chassis mounting hardware matches the specified screw termination type. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components.

Selection Notes

Select this component when high current capacity up to 36 A is required alongside effective two-stage noise reduction. The 250 VAC rating suits standard single-phase AC mains applications. Consider the physical dimensions and chassis mount style if space constraints or vibration resistance are critical factors. Verify that the 2.59 mA leakage current meets safety isolation requirements for the intended application environment.

Part Context

This component belongs to the FN2070 series of single-phase AC/DC chassis filters designed for demanding EMC environments. The series offers various current ratings and termination options to accommodate different power levels. The FN2070L-36-08 specifically targets higher current applications requiring robust mechanical mounting and significant attenuation performance.

Replacement Considerations

Publicly confirmed substitute part numbers for FN2070L-36-08 were not identified in the provided source material.
