FN2070M-1-06

Overview

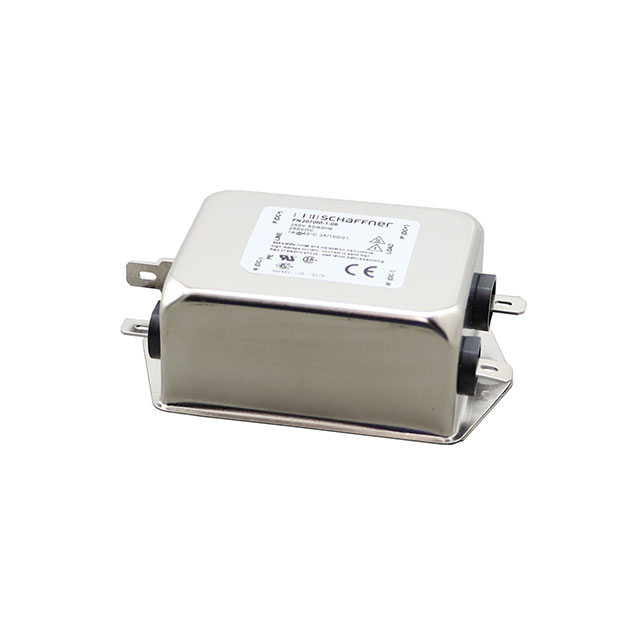

The Schaffner FN2070M-1-06 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It supports a rated current of 1 A and a maximum voltage of 250 VAC. The component utilizes fast-on terminals for electrical connection. Key electrical parameters include a capacitance value of 330 nF and an inductance of 22 mH. It operates within a temperature range of -25°C to +100°C. The unit measures 85 mm in length, 54 mm in depth, and 30.3 mm in height, with a weight of approximately 190 g.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Metal chassis housing ensures optimal earth connection and high-frequency performance
• Fast-on terminal configuration enables rapid installation without soldering

Applications

• Chassis-mounted power conditioning systems
• Single-phase equipment requiring EMI protection
• Industrial control units with low current demands

Procurement Notes

Verify the specific suffix against official datasheets to confirm terminal type and current rating. Ensure compatibility with the target chassis mounting dimensions. Confirm that the fast-on connector style matches existing wiring harnesses. Cross-reference certification requirements such as UL or IEC/EN with the final product specifications before procurement.

Selection Notes

Select this model for applications requiring a compact, single-phase solution with fast-on connectivity. The 1 A rating suits low-power devices. Consider the metal case for superior grounding compared to plastic alternatives. Verify that the 22 mH inductance meets the specific noise attenuation requirements of the circuit design.

Part Context

This component belongs to the FN2070 series, which offers various current ratings and termination styles. The 'M' designation typically indicates a module variant optimized for chassis integration. The series provides standardized dimensions and mounting options for consistent system design across different power levels.

Replacement Considerations

Direct substitutes may include other FN2070 variants with identical electrical characteristics but different terminal types. Verify that any replacement maintains the same two-stage topology and chassis mounting footprint to ensure mechanical compatibility.
