Product Detailed Parameters
- Description：LINE FILTER 110V/250VAC 16A CHAS
- Series：FN 2070
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：110V, 250V
- Current：16 A
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M4)
- Inductance：2.8mH
Download product information
Overview

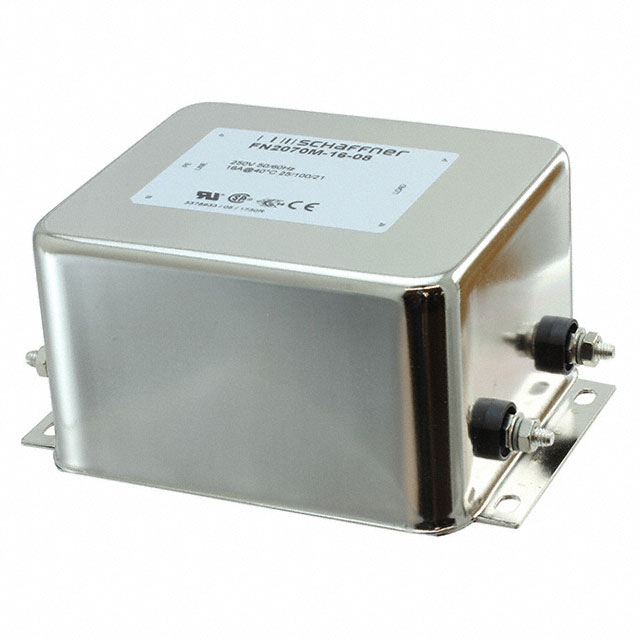

The Schaffner FN2070M-16-08 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It supports rated currents up to 16 A and operates at voltages of 110/250 VAC or 250 VDC within a frequency range of DC to 400 Hz. The unit utilizes screw terminals for connection and features high differential and common-mode attenuation capabilities. Constructed with chokes offering high saturation resistance, it ensures excellent thermal behavior and reliable performance in demanding electromagnetic compatibility applications.
Feature Summary
- Two-stage filtering architecture providing high differential and common-mode attenuation
- Chassis mount design with screw terminals for secure installation
- High saturation resistance chokes ensuring excellent thermal behavior
Applications
- Power conditioning systems requiring conducted noise suppression
- Equipment operating at frequencies up to 400 Hz
- Applications necessitating high electromagnetic interference attenuation
Procurement Notes
Verify the specific suffix against official TE Connectivity / Schaffner documentation to confirm exact electrical ratings and terminal configurations. Ensure the procurement specification matches the required voltage and current parameters for the target application environment.
Selection Notes
Select this component when a single-phase, two-stage filter is required for chassis mounting. Confirm that the 16 A current rating and 250 VAC/DC voltage limits align with the system's operational requirements and that screw termination is compatible with the wiring infrastructure.
Part Context
This model belongs to the FN2070 series, which offers multi-stage performance AC/DC EMI filters. The series provides rated currents ranging from 1 to 36 A and includes optional medical (B type) and safety (A type) versions. These filters are engineered for easy and fast chassis mounting while delivering high-frequency attenuation.
Replacement Considerations
Consult official manufacturer substitution lists for verified equivalents. Cross-reference technical specifications carefully to ensure compatibility with existing mounting and electrical constraints.
