FN2070M-6-06

Overview

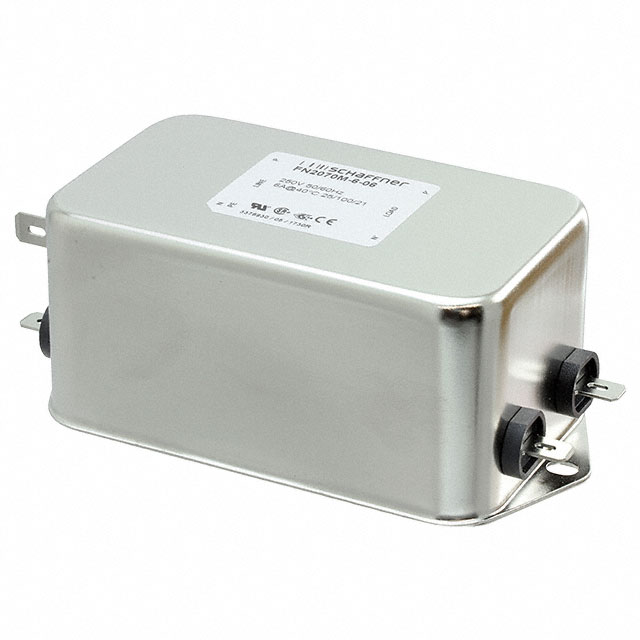

The FN2070M-6-06 is a single-phase, two-stage EMI power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with faston terminals and operates within a frequency range of 0 Hz to 400 Hz. The component has a rated voltage of 250 VAC and a current rating of 6 A. Key electrical parameters include an inductance of 7.8 mH and a leakage current of 3.69 mA. Physical dimensions are 94 mm in length, 56 mm in width, and 45.4 mm in height. It complies with UL, CSA, and IEC/EN standards.

Feature Summary

• Multi-stage architecture providing high differential and common-mode attenuation for effective noise suppression.
• Medical variant configuration designed to meet specific safety requirements for medical equipment applications.
• Chassis mounting style facilitates secure installation within industrial enclosures.
• Faston terminal type enables rapid connection without soldering.

Applications

• Medical electronic devices requiring low leakage current compliance
• Industrial control systems operating at frequencies up to 400 Hz
• Power supply units needing conducted emission reduction
• Equipment requiring certified safety approvals (UL, CSA, IEC/EN)

Procurement Notes

Verify the exact part number suffix against official TE Connectivity / Schaffner documentation to confirm medical certification status. Ensure the faston terminal pitch matches the mating connector specifications. Confirm that the chassis mounting hole pattern aligns with the enclosure design. Check for updated regulatory compliance certificates relevant to the target market before finalizing procurement.

Selection Notes

Select this model when medical safety standards necessitate specific leakage current limits while maintaining standard filtering performance. Compare the 3.69 mA leakage current against stricter B-type or A-type alternatives if lower values are required. Evaluate the 6 A current rating against peak load requirements to ensure adequate thermal margin. Consider the physical dimensions for available chassis space constraints.

Part Context

This component belongs to the FN2070 series of multi-stage AC/DC EMI filters. The series offers rated currents from 1 A to 36 A and includes optional medical versions. The FN2070M-6-06 specifically represents the 6 A medical variant within this lineup, distinguished by its leakage current characteristics compared to standard commercial versions like the FN2070-6-06.

Replacement Considerations

The FN2070-6-06 is a non-medical alternative within the same series but exhibits different leakage current specifications. Verify compatibility if medical certification is not required. No other direct substitute part numbers are confirmed in the provided data.
