FN2080-1-06

Overview

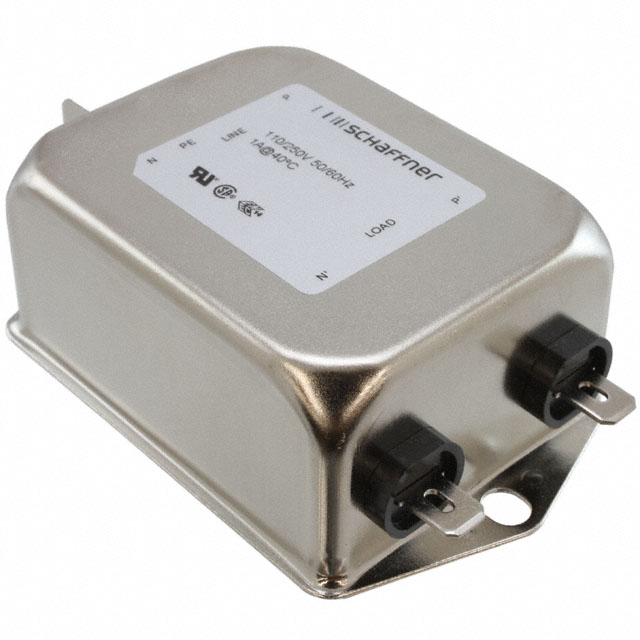

The Schaffner FN2080-1-06 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 1 A. The device utilizes faston terminals for electrical connections and operates within a frequency range of 0 Hz to 400 Hz. Key electrical parameters include a maximum leakage current of 660 uA. The unit measures 64.8 mm in length, 49.8 mm in width, and 30.3 mm in height, with an operating temperature range from -25 C to +100 C. It holds UL, CSA, and IEC/EN compliance certifications.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design for secure installation
• Faston terminal configuration for straightforward wiring

Applications

• Industrial equipment power conditioning
• Medical device power supply protection
• General-purpose electronic systems requiring EMI suppression

Procurement Notes

Verify the specific termination type matches the system requirements, as the FN2080 series includes variants with wire leads. Confirm that the 1 A current rating and 250 VAC voltage specifications align with the target application's electrical load. Ensure chassis mounting provisions are available for the intended enclosure design prior to procurement.

Selection Notes

Select this model when a compact, single-phase solution is required for low-current applications. The two-stage design offers superior performance compared to single-stage alternatives. Consider the physical dimensions and faston connection style during the mechanical integration phase to ensure compatibility with existing board layouts or panel cutouts.

Part Context

This component belongs to the FN2080 series, which provides high-performance EMC filters for various industrial and commercial applications. The series is characterized by its robust construction and compliance with international safety standards. It serves as a critical component for maintaining signal integrity and regulatory compliance in sensitive electronic environments.

Replacement Considerations

Cross-reference part number 800580-SF as an alternative identifier. Verify compatibility with other FN2080-1-xx variants if different termination styles are needed, ensuring electrical ratings remain consistent.
