FN2080-10-06

Overview

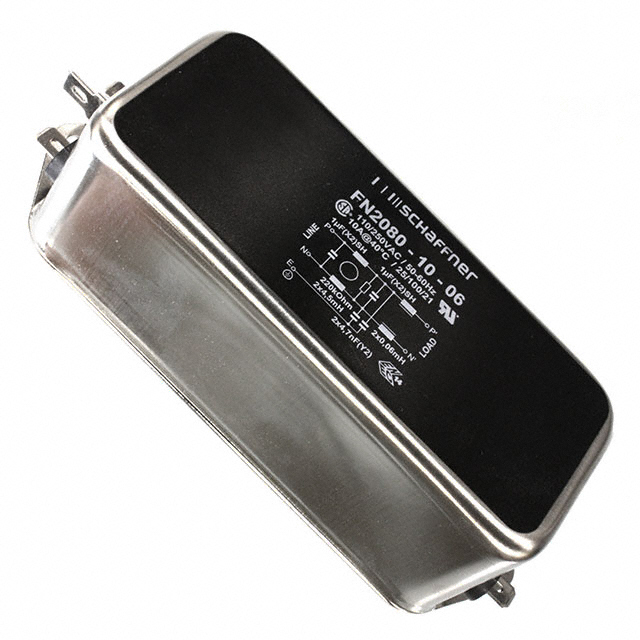

The Schaffner FN2080-10-06 is a single-phase, two-stage EMI/EMC power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 10 A, operating within a frequency range of 0 Hz to 400 Hz. The unit utilizes Faston termination types for electrical connections. Key physical specifications include dimensions of 130.5 mm in length, 56 mm in width, and 45.4 mm in height, with an operational temperature range spanning from -25°C to +100°C. The leakage current is specified at 660 uA.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design for secure installation
• Faston terminal configuration for rapid connection

Applications

• Industrial equipment power conditioning
• Medical device power supply protection
• Telecommunications infrastructure filtering

Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation to confirm compliance with current safety standards such as UL, CSA, and IEC/EN. Ensure that the Faston terminal pitch matches the target PCB or wire harness requirements. Confirm that the chassis mounting holes align with the mechanical drawing provided in the official product specification sheet before procurement.

Selection Notes

Select this component when a single-phase, two-stage solution is required for applications handling up to 10 A at 250 VAC. Consider the 660 uA leakage current limit for sensitive medical or low-leakage environments. Verify that the operating frequency range of 0 Hz to 400 Hz covers the system's input spectrum. Evaluate the chassis mount style against available panel space and thermal management requirements.

Part Context

This component belongs to the FN2080 series of power line filters manufactured by TE Connectivity / Schaffner. The series provides general-purpose EMC filtering solutions for various electronic systems. The FN2080-10-06 variant specifically addresses single-phase applications requiring robust noise suppression and reliable performance under standard industrial operating conditions.

Replacement Considerations

Consult the official Schaffner replacement guide for direct equivalents. Cross-reference part numbers such as FN2080-10-06 with other distributors to ensure identical specifications. Verify mechanical dimensions and terminal types before substituting with generic alternatives.
