FN2080-10-07

Overview

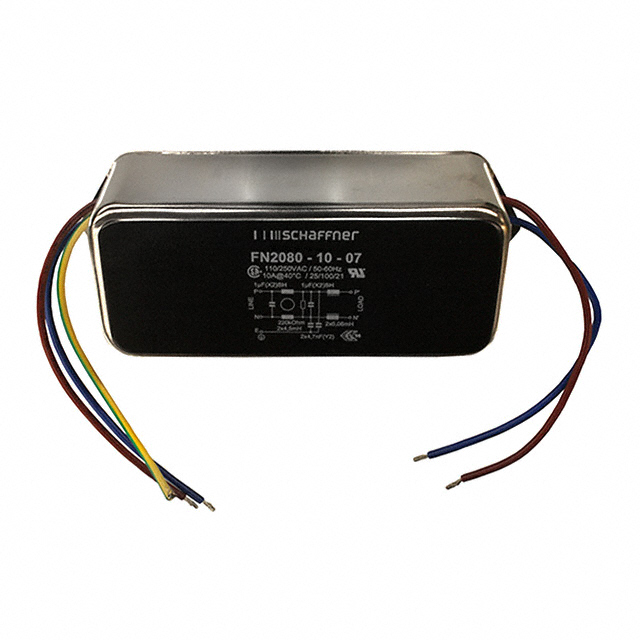

The Schaffner FN2080-10-07 is a single-phase, two-stage power line filter designed for chassis mounting. It supports an operating frequency range of DC to 400 Hz with a rated voltage of 250 VAC and a continuous current rating of 10 A. The unit features wire termination and exhibits a leakage current of 660 µA. Physical dimensions are 130.5 mm in length, 56 mm in width, and 45.4 mm in height, weighing 750 g. It operates within a temperature range of -25 °C to +100 °C and holds UL, CSA, and IEC/EN compliance certifications.

Feature Summary

• Two-stage filtering architecture for enhanced EMI suppression
• Chassis mount design for secure installation
• Wire termination style for direct connection

Applications

• Industrial control systems
• Medical equipment power supplies
• Telecommunications infrastructure

Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation to confirm current regulatory compliance status and mechanical tolerances. Ensure that the wire termination specifications match the system's input cable requirements. Cross-reference the part number alias 800633-SF if applicable to your supply chain records. Confirm that the chassis mounting holes align with the enclosure design before finalizing procurement orders.

Selection Notes

Select this component when a single-phase solution is required for frequencies up to 400 Hz. The 10 A current rating suits moderate power applications. Verify that the 660 µA leakage current is acceptable for sensitive medical or safety-critical circuits. Consider the physical footprint of 130.5 x 56 x 45.4 mm for enclosure integration. Ensure the wire termination method is compatible with the available wiring harnesses.

Part Context

This model belongs to the FN2080 series of high-performance power line filters manufactured by TE Connectivity / Schaffner. The series is engineered for demanding EMC environments requiring robust attenuation across multiple stages. The FN2080-10-07 specifically addresses single-phase AC/DC applications where chassis stability and reliable wire connections are prioritized over panel-mount alternatives.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific configuration are not available in the provided documentation.
