FN2080-10-08

Overview

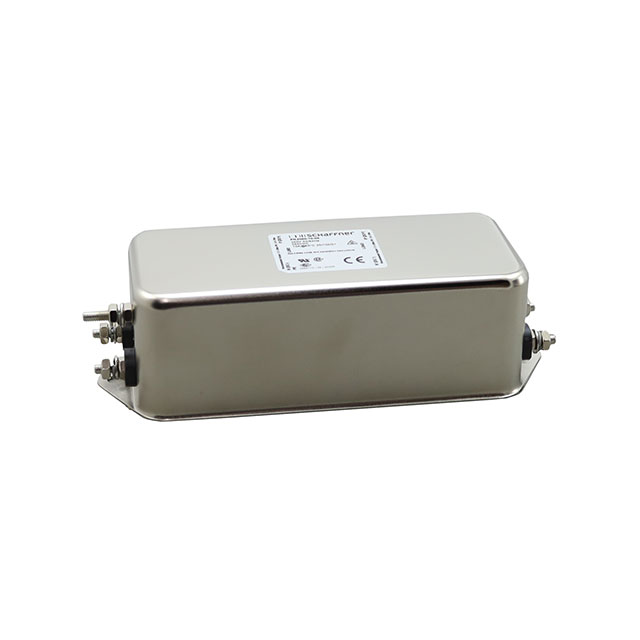

The FN2080-10-08 is a single-phase, two-stage power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with screw termination for secure installation. The component operates within a frequency range of 0 Hz to 400 Hz and supports a voltage rating of 250 VAC. It handles a current rating of 10 A with a maximum leakage current of 660 uA. Physical dimensions are 156 mm in length, 57.5 mm in width, and 45.5 mm in height. The unit functions reliably between -25°C and +100°C. It holds UL, CSA, and IEC/EN compliance certifications.

Feature Summary

• Two-stage filtering architecture designed for effective electromagnetic interference suppression
• Chassis mount construction utilizing screw terminals for robust mechanical stability
• Certified compliance with major international safety standards including UL, CSA, and IEC/EN

Applications

• General-purpose industrial equipment requiring EMI/EMI protection
• Single-phase AC power distribution systems
• Electronic devices sensitive to conducted noise in the 0-400 Hz range

Procurement Notes

Verify the specific part number FN2080-10-08 against official TE Connectivity / Schaffner documentation to confirm electrical ratings and physical dimensions. Ensure that the chassis mounting configuration and screw termination type match the system requirements. Confirm that the operating temperature range and voltage ratings align with the intended application environment before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase, two-stage filter is required for general industrial applications. The 10 A current rating and 250 VAC specification define its operational limits. Consider the chassis mount style and physical footprint constraints during integration. Verify that the leakage current characteristics meet the safety requirements of the end equipment.

Part Context

This component belongs to the FN2080 series of power line filters from TE Connectivity / Schaffner. The series provides various current ratings and configurations for single-phase applications. The FN2080-10-08 specifically addresses needs for moderate current handling with standard chassis mounting solutions in industrial environments.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternatives. Cross-referencing requires matching electrical specifications, mounting styles, and certification approvals.
